Black+Decker Spare Part E-Book | Page 45

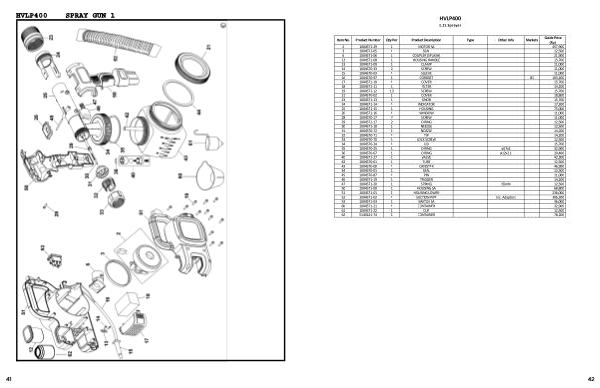

HVLP400
1.2L Sprayer
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
2 1004571-29 1 MOTOR SA 457,900
3 1004571-05 1 SEAL 12,500
6 1004571-06 1 COUPLER (SPLASH) 21,900
12 1004571-08 1 HOUSING HANDLE 15,700
13 1004571-09 1 CLAMP 11,000
14 1004570-33 2 SCREW 11,000
15 1004570-03 1 SLEEVE 11,000
16 1004570-97 1 CORDSET B1 103,200
17 1004571-10 1 COVER 15,700
18 1004571-11 1 FILTER 14,200
19 1004571-12 13 SCREW 15,700
21 1004570-02 1 COVER 18,800
23 1004571-13 1 KNOB 15,700
24 1004571-14 1 INDICATOR 17,300
25 1004571-15 1 HOUSING 75,000
26 1004571-16 1 WINDOW 11,000
28 1004570-17 7 SCREW 11,000
29 1004571-17 2 O RING 12,500
30 1004571-18 1 NEEDLE 12,500
31 1004570-72 1 NOZZLE 14,200
32 1004570-71 1 TIP 14,200
33 1004570-70 1 LOCK SCREW 12,500
34 1004570-24 1 LID 15,700
35 1004570-25 1 O RING ø67x3 32,900
36 1004570-67 1 O RING ø12x2.1 20,400
40 1004571-27 1 VALVE 42,300
42 1004570-61 1 TUBE 12,500
43 1004570-00 1 CANISTER 46,900
44 1004570-01 1 SEAL 12,500
45 1004570-87 1 PIN 11,000
46 1004571-19 1 TRIGGER 14,200
47 1004571-20 1 SPRING 65mN 12,500
50 1004571-00 1 HOUSING SA 68,800
51 1004571-01 1 HOUSING LOWER 236,000
52 1004571-02 1 SUCTION PIPE Inc. Adaptors 306,300
53 1004571-03 1 SWITCH SA 36,000
60 1004571-21 1 CONTAINER 32,900
61 1004571-22 1 CUP 12,500
62 5140141-74 1 CONTAINER 78,200
