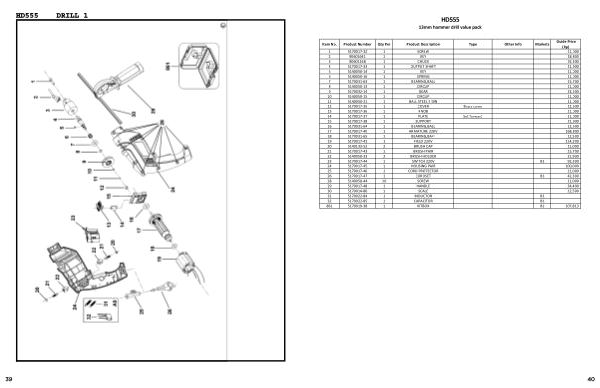

Black+Decker Spare Part E-Book | Page 43

HD555
13mm hammer drill value pack
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 5170017-32 1 SCREW 11,000
2 90601641 1 KEY 18,800
3 90601168 1 CHUCK 92,300
4 5170017-33 1 OUTPUT SHAFT 21,900
5 5140050-14 1 KEY 11,000
6 5140050-16 1 SPRING 11,000
7 5170031-63 1 BEARING,BALL 15,700
8 5140050-13 1 CIRCLIP 11,000
9 5170032-14 1 GEAR 23,500
10 5140050-15 1 CIRCLIP 11,000
11 5140050-21 1 BALL STEEL 5 DIN 11,000
12 5170017-35 1 COVER Brass cover 12,500
13 5170017-36 1 KNOB 11,000
14 5170017-37 1 PLATE Set forward 11,000
15 5170017-38 1 SUPPORT 21,900
16 5170031-64 1 BEARING,BALL 12,500
17 5170017-40 1 ARMATURE 220V 168,800
18 5170031-65 1 BEARING,BALL 12,500
19 5170017-42 1 FIELD 220V 114,200
20 5140133-52 2 BRUSH CAP 11,000
21 5170017-43 1 BRUSH PAIR 15,700
22 5140050-33 2 BRUSH HOLDER 21,900
23 5170017-44 1 SWITCH 220V B1 92,300
24 5170017-45 1 HOUSING PAIR 100,000
25 5170017-46 1 CORD PROTECTOR 11,000
26 5170017-47 1 CORDSET B1 42,300
28 5140050-44 10 SCREW 11,000
29 5170017-48 1 HANDLE 34,400
30 5170014-86 1 SCALE 12,500
31 5170022-84 1 INDUCTOR B1
32 5170022-85 1 CAPACITOR B1
861 5170019-38 1 KITBOX B1 107,813
40
