Black+Decker Spare Part E-Book | Page 37

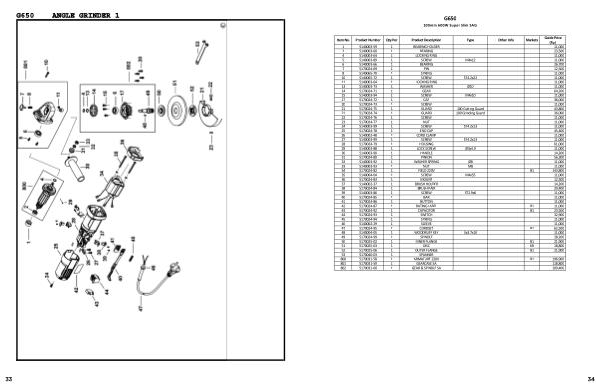

G650
100mm 600W Super Slim SAG
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 5140003-59 1 BEARING HOLDER 11,000
2 5140003-60 1 BEARING 23,500
4 5140003-64 1 LOCKING RING 11,000
5 5140003-89 1 SCREW M4x12 11,000
6 5140003-66 1 BEARING 26,700
7 5170024-69 1 PIN 12,500
8 5140065-70 1 SPRING 11,000
10 5140065-72 1 SCREW ST4.2x22 11,000
11 5140003-64 1 LOCKING RING 11,000
13 5140003-73 1 WASHER Ø10 11,000
14 5170024-71 1 GEAR 64,200
15 5140003-94 1 SCREW M4x10 11,000
17 5170024-72 1 CAP 36,000
20 5170024-73 1 SCREW 11,000
21 5170024-75 1 GUARD 100 Cutting Guard 43,800
21 5170024-74 1 GUARD 100 Grinding Guard 36,000
22 5170024-76 1 SCREW 11,000
23 5170024-77 1 NUT 11,000
24 5140003-99 1 SCREW ST4.2x13 11,000
25 5170024-78 1 END CAP 45,400
26 5140002-48 1 CORD CLAMP 11,000
27 5140003-99 1 SCREW ST4.2x13 11,000
28 5170024-79 1 HOUSING 61,000
29 5140003-88 1 LOCK SCREW Ø3x4.9 11,000
30 5140003-90 1 HANDLE 14,200
31 5170024-80 1 PINION 56,300
32 5140003-92 1 WASHER SPRING Ø8 11,000
33 5140003-93 1 NUT M8 11,000
34 5170024-82 1 FIELD 220V B1 143,800
35 5140004-04 1 SCREW M4x55 11,000
36 5170024-83 1 MOUNT 12,500
37 5140002-37 1 BRUSH HOLDER 14,200
38 5170024-84 1 BRUSH PAIR 20,400
39 5140003-86 1 SCREW ST2.9x6 11,000
40 5170024-85 1 BAR 11,000
41 5170024-86 1 BUTTON 11,000
42 5170024-87 1 RATING LABEL B1 11,000
43 5170024-92 1 CAPACITOR B1 23,500
44 5170024-93 1 SWITCH 32,900
45 5170024-94 1 SPRING 11,000
46 5140002-29 1 SLEEVE 11,000
47 5170024-95 1 CORDSET B1 62,500
48 5140004-05 1 WOODRUFF KEY 3x3.7x10 11,000
49 5170024-99 1 SPINDLE 28,200
50 5170025-02 1 INNER FLANGE B1 21,900
51 5170025-03 1 DISC KR 18,800
52 5170025-06 1 OUTER FLANGE B1 21,900
53 5170040-03 1 SPANNER
800 5170031-58 1 ARMATURE 220V B1 196,900
801 5170031-59 1 GEARCASE SA 118,800
802 5170031-60 1 GEAR & SPINDLE SA 109,400
34
