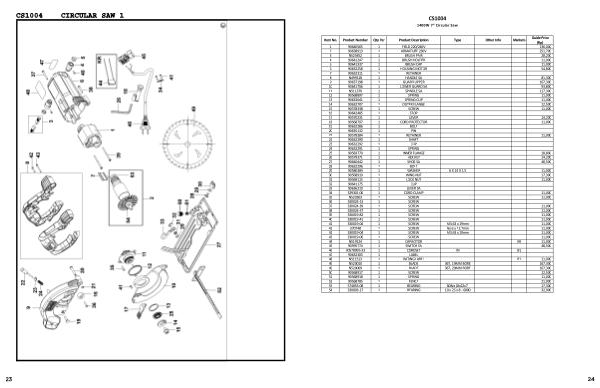

CS1004
1400W 7” Circular Saw
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 90640565 1 FIELD 220/240V 136,000
2 90638913 1 ARMATURE 230V 251,700
3 N525452 1 BRUSH PAIR 28,200
4 90641247 1 BRUSH HOLDER 11,000
5 90641337 1 BRUSH CAP 11,000
6 90632258 1 HOUSING MOTOR 54,800
7 90632311 1 RETAINER
8 N499118 1 HANDLE SA 81,300
9 90637198 1 GUARD UPPER 167,300
10 90641706 1 LOWER GUARD SA 93,800
11 N511370 1 SPINDLE SA 117,300
12 90568897 1 SPRING 11,000
13 90633041 1 SPRING CLIP 11,000
14 90632707 1 OUTER FLANGE 12,500
15 90578338 1 SCREW 11,000
16 90642485 1 STOP
17 90570231 1 LEVER 14,200
18 90568797 1 CORD PROTECTOR 11,000
19 90632286 1 BOLT
20 90635132 1 PIN
21 90578384 1 RETAINER 11,000
22 90632290 1 SHAFT
23 90632292 1 CLIP
24 90632291 1 SPRING
25 90583770 1 INNER FLANGE 18,800
26 90579371 1 HEX KEY 14,200
27 90640442 1 SHOE SA 48,500
28 90632296 1 BOLT
29 90580384 1 WASHER 6 X 14 X 1.5 11,000
30 90568910 1 WING NUT 17,300
31 90569115 1 LOCK NUT 11,000
32 90641175 1 CLIP
33 90636210 1 LEVER SA
34 329301-00 1 CORD CLAMP 11,000
35 N520303 1 SCREW 11,000
36 330024-13 1 SCREW
37 330024-39 1 SCREW 11,000
38 330024-37 1 SCREW 11,000
39 330019-82 1 SCREW 11,000
40 330019-41 1 SCREW 11,000
41 330019-04 1 SCREW M3.63 x 19mm 11,000
41 370748 1 SCREW No 6 x 12.7mm 11,000
42 330019-04 1 SCREW M3.63 x 19mm 11,000
43 330019-06 1 SCREW 11,000
44 N519124 1 CAPACITOR KR 11,000
45 90595774 1 SWITCH SA 48,500
46 90578995-33 1 CORDSET IN B1
47 90632305 1 LABEL
48 N511513 1 RATING LABEL B1 11,000
49 N520010 1 BLADE 36T, 19MM BORE 167,300
49 N520009 1 BLADE 36T, 20MM BORE 167,300
50 90568917 1 SCREW 12,500
51 90568918 1 SPRING 11,000
52 90568785 1 FENCE 21,900
53 574853-08 1 BEARING 608zz (8x22x7) 17,300
54 330003-17 1 BEARING 10 x 26 x 8 - 6000 32,900
