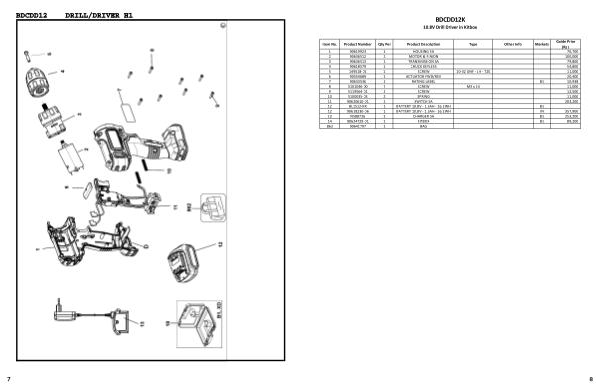

Black+Decker Spare Part E-Book | Page 11

BDCDD12K
10.8V Drill Driver in Kitbox
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 90619923 1 HOUSING SA 76,700
2 90636512 1 MOTOR & PINION 100,000
3 90636513 1 TRANSMISSION SA 79,800
4 90618579 1 CHUCK KEYLESS 54,800
5 149518-01 1 SCREW 10-32 UNF - LH - T20 11,000
6 90554689 1 ACTUATOR FWD/REV 20,400
7 90633536 1 RATING LABEL B1 10,938
8 5101046-00 7 SCREW M3 x 14 11,000
9 5119564-01 1 SCREW 12,500
10 5100035-03 2 SPRING 11,000
11 90620610-01 1 SWITCH SA 203,200
12 BL1512-KR 1 BATTERY 10.8V - 1.5AH - 16.2WH B1
12 90618230-06 1 BATTERY 10.8V - 1.5AH - 16.2WH IN 357,900
13 N588726 1 CHARGER SA B1 253,200
14 90624729-01 1 KITBOX B1 89,200
862 90641797 1 BAG
8
