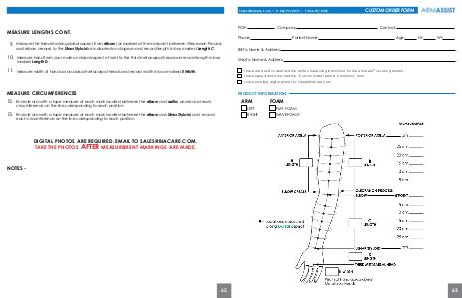

MEASURE LENGTHS CONT.
9. Measure the forearm along dorsal aspect from elbow (as marked at the mid-point between Olecranon Process
and elbow crease) to the Ulnar Styloid as indicated on diagram and record length in box marked Length C.
10. Measure hand from your mark on dorsal aspect of wrist to the third metacarpal head and record length in box
marked Length D.
11. Measure width of hand across dorsal metacarpal heads and record width in box marked E Width.
MEASURE CIRCUMFERENCES
12. Encircle arm with a tape measure at each mark located between the elbow and axilla, and record each
circumference on the line corresponding to each position.
13. Encircle arm with a tape measure at each mark located between the elbow and Ulnar Styloid, and record
each circumference on the line corresponding to each position.
DIGITAL PHOTOS ARE REQUIRED. EMAIL TO SALES@BIACARE.COM.
TAKE THE PHOTOS AFTER MEASUREMENT MARKINGS ARE MADE.
NOTES -
62
