B1103EN Multiplex Tunnel Expansion Channel Datasheet v1.0 | Página 4

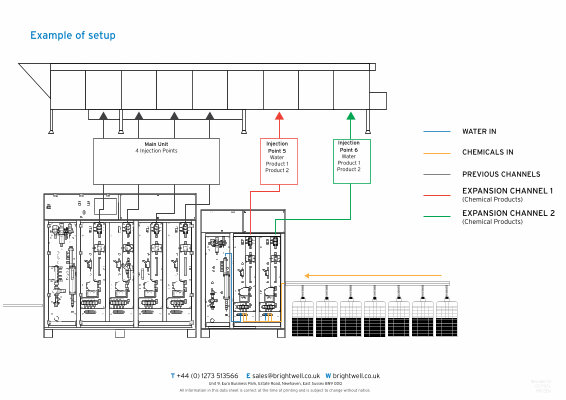

Example of setup
WATER IN
Main Unit 4 Injection Points
Injection Point 5 Water Product 1 Product 2
Injection Point 6 Water Product 1 Product 2
CHEMICALS IN
PREVIOUS CHANNELS
EXPANSION CHANNEL 1
( Chemical Products )
EXPANSION CHANNEL 2
( Chemical Products )
