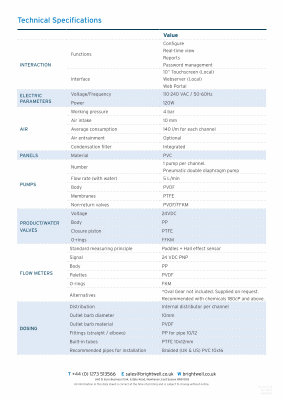

Technical Specifications
INTERACTION
ELECTRIC PARAMETERS
AIR
Functions
Interface
Voltage / Frequency Power Working pressure Air intake Average consumption Air entrainment Condensation filter
Value
Configure Real-time view Reports Password management 10 ” Touchscreen ( Local ) Webserver ( Local ) Web Portal 110-240 VAC / 50-60Hz 120W 4 bar 10 mm 140 l / m for each channel Optional Integrated PANELS Material PVC
PUMPS
PRODUCT / WATER VALVES
FLOW METERS
Number
Flow rate ( with water ) Body Membranes Non-return valves Voltage Body Closure piston O-rings Standard measuring principle Signal Body Palettes O-rings
Alternatives
Distribution Outlet barb diameter
1 pump per channel . Pneumatic double diaphragm pump 5 L / min PVDF PTFE PVDF / FFKM 24VDC PP PTFE FFKM Paddles + Hall effect sensor 24 VDC PNP PP PVDF FKM * Oval Gear not included . Supplied on request . Recommended with chemicals 180cP and above . Internal distributor per channel 10mm
DOSING
Outlet barb material
PVDF Fittings ( straight / elbows ) PP for pipe 10 / 12 Built-in tubes Recommended pipes for installation
PTFE 10x12mm Braided ( UK & US ) PVC 10x16
T + 44 ( 0 ) 1273 513566 E sales @ brightwell . co . uk W brightwell . co . uk Unit 9 , Euro Business Park , Estate Road , Newhaven , East Sussex BN9 0DQ All information in this data sheet is correct at the time of printing and is subject to change without notice .
Revision 1.0 02 / 2025 B1096EN
