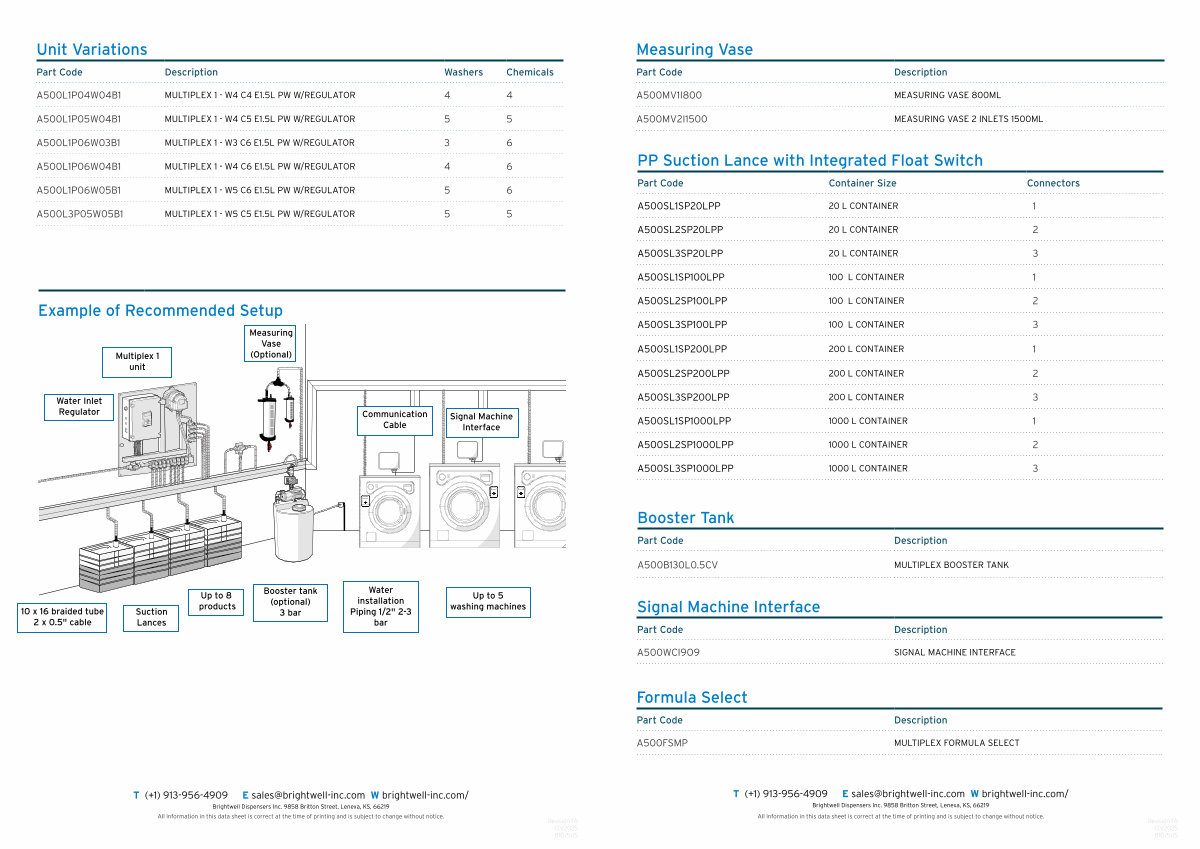

B1075US Multiplex 1 Datasheet v1.5 | Page 4

Unit Variations
Part Code
Description
Washers
Chemicals
A500L1P04W04B1
MULTIPLEX 1 - W4 C4 E1.5L PW W / REGULATOR
4
4
A500L1P05W04B1
MULTIPLEX 1 - W4 C5 E1.5L PW W / REGULATOR
5
5
A500L1P06W03B1
MULTIPLEX 1 - W3 C6 E1.5L PW W / REGULATOR
3
6
A500L1P06W04B1
MULTIPLEX 1 - W4 C6 E1.5L PW W / REGULATOR
4
6
A500L1P06W05B1
MULTIPLEX 1 - W5 C6 E1.5L PW W / REGULATOR
5
6
A500L3P05W05B1
MULTIPLEX 1 - W5 C5 E1.5L PW W / REGULATOR
5
5
Example of Recommended Setup
Multiplex 1 unit
Measuring Vase ( Optional )
Water Inlet Regulator
Communication Cable
Signal Machine Interface
10 x 16 braided tube 2 x 0.5 " cable
Suction Lances
Up to 8 products
Booster tank ( optional ) 3 bar
Water installation Piping 1 / 2 " 2-3 bar
Up to 5 washing machines
T (+ 1 ) 913-956-4909 E sales @ brightwell-inc . com W brightwell-inc . com / Brightwell Dispensers Inc . 9858 Britton Street , Lenexa , KS , 66219 All information in this data sheet is correct at the time of printing and is subject to change without notice .
Revision 1.6 03 / 2025 B1075US
