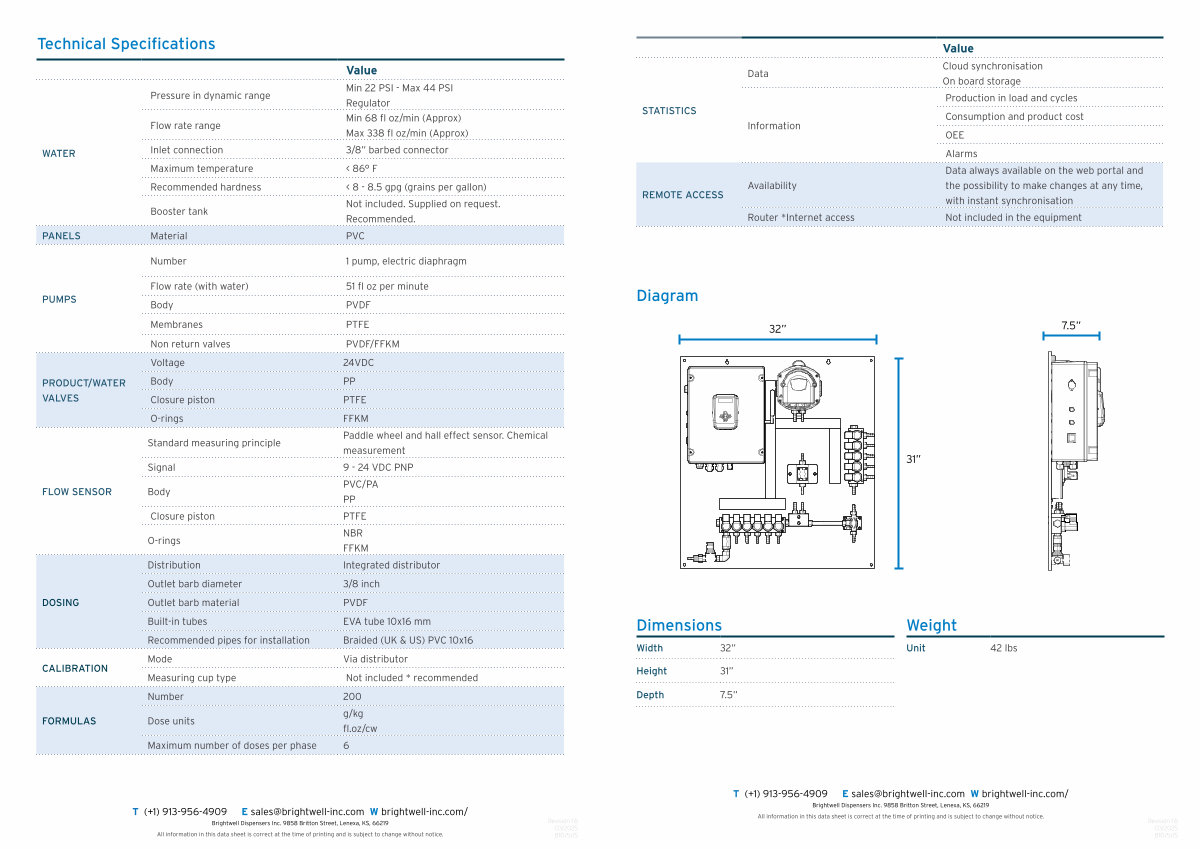

Technical Specifications
WATER
Pressure in dynamic range
Flow rate range
Inlet connection Maximum temperature
Value
Min 22 PSI - Max 44 PSI Regulator Min 68 fl oz / min ( Approx ) Max 338 fl oz / min ( Approx ) 3 / 8 ” barbed connector < 86 ° F
|
Recommended hardness |
< 8 - 8.5 gpg ( grains per gallon ) |
|
Booster tank |
Not included . Supplied on request .
Recommended .
|
PANELS |
Material |
PVC |
PUMPS
PRODUCT / WATER VALVES
FLOW SENSOR
DOSING
CALIBRATION
Number
Flow rate ( with water ) Body Membranes Non return valves Voltage Body Closure piston O-rings
Standard measuring principle Signal Body Closure piston O-rings
Distribution Outlet barb diameter Outlet barb material Built-in tubes Recommended pipes for installation Mode Measuring cup type
1 pump , electric diaphragm
51 fl oz per minute PVDF PTFE PVDF / FFKM 24VDC PP PTFE FFKM Paddle wheel and hall effect sensor . Chemical measurement 9 - 24 VDC PNP PVC / PA PP PTFE NBR FFKM Integrated distributor 3 / 8 inch PVDF EVA tube 10x16 mm Braided ( UK & US ) PVC 10x16 Via distributor Not included * recommended
Number 200
FORMULAS
Dose units |
g / kg fl . oz / cw |
Maximum number of doses per phase |
6 |
T (+ 1 ) 913-956-4909 E sales @ brightwell-inc . com W brightwell-inc . com / Brightwell Dispensers Inc . 9858 Britton Street , Lenexa , KS , 66219 All information in this data sheet is correct at the time of printing and is subject to change without notice .
Revision 1.6 03 / 2025 B1075US
