Diseño Industrial. Pere Ponsa, Toni Granollers. Diseño y automatización industrial

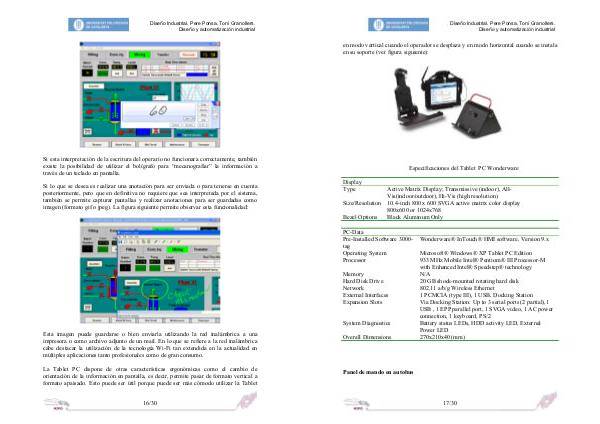

en modo vertical cuando el operador se desplaza y en modo horizontal cuando se instala en su soporte( ver figura siguiente):
Especificaciones del Tablet PC Wonderware
Display Type
Size / Resolution Bezel Options
Active Matrix Display; Transmissive( indoor), All- Vis( indoor / outdoor), Hi-Vis( high resolution) 10.4-inch 800 x 600 SVGA active matrix color display 800x600 or 1024x768 Black Aluminum Only
PC-Data
Pre-Installed Software 3000-
Wonderware ® InTouch ® HMI software, Version 9. x
tag
Operating System
Microsoft ® Windows ® XP Tablet PC Edition
Processor
933 MHz Mobile Intel ® Pentium ® III Processor-M
with Enhanced Intel ® Speedstep ® technology
Memory
N / A
Hard Disk Drive
20 GB shock-mounted rotating hard disk
Network
802.11 a / b / g Wireless Ethernet
External Interfaces
1 PCMCIA( type III), 1 USB, Docking Station
Expansion Slots
Via Docking Station: Up to 3 serial ports( 2 partial), 1
USB, 1 EPP parallel port, 1 SVGA video, 1 AC power
connection, 1 keyboard, PS / 2
System Diagnostics
Battery status LEDs, HDD activity LED, External
Power LED
Overall Dimensions
270x210x40( mm)
Panel de mando en autobus
