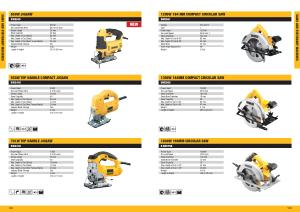

ASIA DEWALT Catalogue _R01(2021-2022) | Page 74

SAWS AND STATIONARY MACHINES
650W JIGSAW
DWE349
Power Input No Load Stroke Rate Stroke Length Bevel Capacity Max . Depth of Cut ( Wood ) Max . Depth of Cut ( Steel ) Max . Depth of Cut ( Non Ferrous Metal ) Keyless Blade Change Weight Length x Height
650 W 800-3100 spm 20 mm 45 deg 85 mm 10 mm 20 mm Yes 3 kg 230 X 200 mm
NEW
1200W 184 MM COMPACT CIRCULAR SAW
DWE561
Voltage
220-240 V
Type
1
Power Input
1200 W
No-Load Speed
5500 min-1
Blade Diameter
184 mm
Max . Depth Of Cut At 90 º
65 mm
Max . Depth Of Cut At 45 º
42 mm
Blade Bore
20 mm
Bevel Angle Adjustment
48 º
Weight
3.6 kg
SAWS AND STATIONARY MACHINES
550W TOP HANDLE COMPACT JIGSAW
DW341K
Power Input
550W
No Load Stroke Rate
0-3100 spm
Stroke Length
20 mm
Bevel Capacity
45 °
Max . Depth of Cut ( Wood )
85 mm
Max . Depth of Cut ( Steel )
10 mm
Max . Depth of Cut ( Non Ferrous Metal )
20 mm
Keyless Blade Change
Yes
Weight
2.0 kg
Length x Height
230 x 200 mm
1350W 184MM COMPACT CIRCULAR SAW
DWE560
Power Input
1350W
No Load Speed
5500 rpm
Blade Diameter
184 mm
Blade Bore Diameter
16 mm
Bevel Capacity
48 °
Max . Depth of Cut at 90 º
65 mm
Max . Depth of Cut at 45 º
42 mm
Weight
3.7 kg
Length x Height
286 x 226 mm
701W TOP HANDLE JIGSAW
DW331K
Power Input
701W
No Load Stroke Rate
0-3100 spm
Stroke Length
26 mm
Bevel Capacity
45 °
Max . Depth of Cut ( Wood )
130 mm
Max . Depth of Cut ( Steel )
12 mm
Max . Depth of Cut ( Non Ferrous Metal )
30 mm
Keyless Blade Change
Yes
Weight
2.6 kg
Length x Height
250 x 210 mm
1600W 190MM CIRCULAR SAW
DWE575K
Power Input
1600W
No Load Speed
5200 rpm
Blade Diameter
190 mm
Blade Bore Diameter
30 mm
Bevel Capacity
57 °
Max . Depth of Cut at 90 º
67 mm
Max . Depth of Cut at 45 º
49 mm
Weight
4.0 kg
Length x Height
355 x 245 mm
