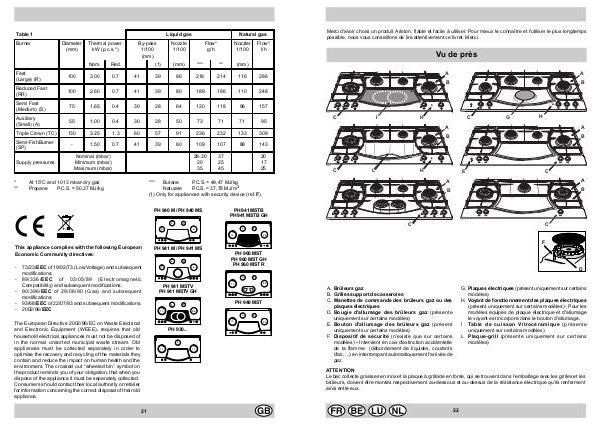

Table 1 Burner Liquid gas Diameter (mm) Thermal power kW (p.c.s.*) Nom. Red. By-pass 1/100 (mm) Natural gas Nozzle 1/100 Flow* g/h Nozzler 1/100 (1) (mm) *** ** (mm) Flow* l/h Fast (Large) (R) 100 3.00 0.7 41 39 86 218 214 116 286 Reduced Fast (RR) 100 2.60 0.7 41 39 80 189 186 110 248 Semi Fast (Medium) (S) 75 1.65 0.4 30 28 64 120 118 96 157 Auxiliary (Small) (A) 55 1.00 0.4 30 28 50 73 71 71 95 Triple Crown (TC) 130 3.25 1.3 60 57 91 236 232 133 309 Semi-FishBurner (SP) - 1.50 0.7 41 39 60 109 107 88 143 28-30 20 35 37 25 45 Supply pressures * ** Nominal (mbar) Minimum (mbar) Maximum (mbar) At 15°C and 1013 mbar-dry gas Propane P.C.S. = 50,37 MJ/kg 20 17 25 *** Butane P.C.S. = 49,47 MJ/kg Naturale P.C.S. = 37,78 MJ/m 3 (1) Only for appliances with security device (ref. F). PH 940 M / PH 940 MS PH 941 MSTB PH 941 MSTB GH A S S R S A TC This appliance complies with the following European Economic Community directives: PH 941 M / PH 941 MS A S - - - - - 73/23/EEC of 19/02/73 (Low Voltage) and subsequent modifications; 89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and subsequent modifications; 90/396/EEC of 29/06/90 (Gas) and subsequent modifications; 93/68/EEC of 22/07/93 and subsequent modifications. 2002/96/EEC RR S R PH 960 MST PH 960 MST GH PH 960 MST R S PH 941 MSTV PH 941 MSTV GH RR SP PH 940 MST A S RR TC S TC The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. PH 930... S TC 21 A TC TC A RR
