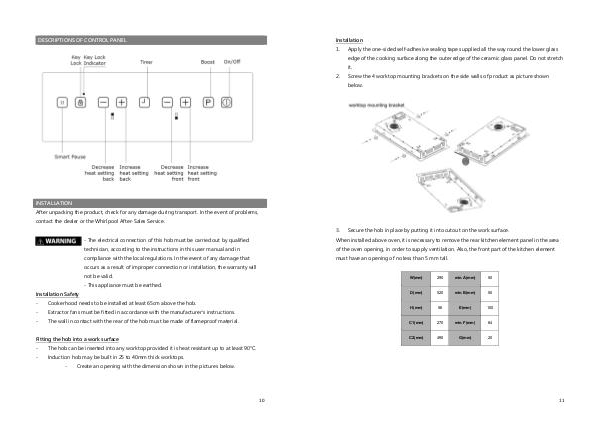

Installation
1.
Apply the one-sided self-adhesive sealing tape supplied all the way round the lower glass
edge of the cooking surface along the outer edge of the ceramic glass panel. Do not stretch
it.
2.
Screw the 4 worktop mounting brackets on the side walls of product as picture shown
below.
3.
Secure the hob in place by putting it into cutout on the work surface.
When installed above oven, it is necessary to remove the rear kitchen element panel in the area
of the oven opening, in order to supply ventilation. Also, the front part of the kitchen element
must have an opening of no less than 5 mm tall.
W (mm) 290 min. A (mm) 50
D (mm) 520 min. B (mm) 50
H (mm) 56 E (mm) 100
C1 (mm) 270 min. F (mm) 64
C2 (mm) 490 G (mm) 20
11
