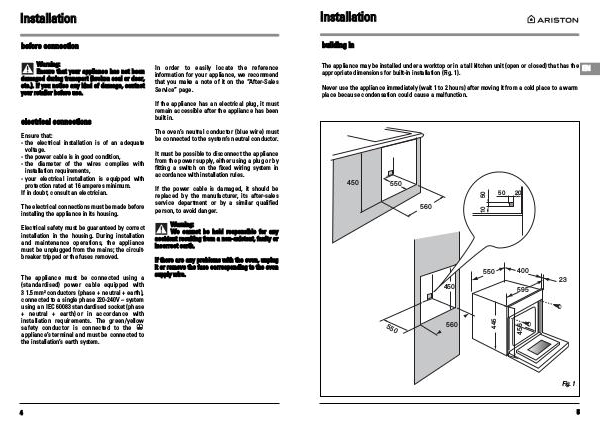

I n s t a l l a t i o n
b e f o r e c o n n e c t i o n
Wa r n i n g :
E n s u r e t h a t y o u r a p p l i a n c e h a s n o t b e e n
d a m a g e d d u r i n g t r a n s p o r t ( b r o k e n s e a l o r d o o r ,
e t c . ). I f y o u n o t i c e a n y k i n d o f d a m a g e , c o n t a c t
y o u r r e t a i l e r b e f o r e u s e .
e l e c t r i c a l c o n n e c t i o n s
Ensure that:
- the electrical installation is of an adequate
voltage.
- the power cable is in good condition,
- the diameter of the wires complies with
installation requirements,
- your electrical installation is equipped with
protection rated at 16 amperes minimum.
If in doubt, consult an electrician.
The electrical connections must be made before
installing the appliance in its housing.
Electrical safety must be guaranteed by correct
installation in the housing. During installation
and maintenance operations, the appliance
must be unplugged from the mains; the circuit-
breaker tripped or the fuses removed.
The appliance must be connected using a
(standardised) power cable equipped with
3 1.5 mm² conductors (phase + neutral + earth),
connected to a single phase 220-240V ~ system
using an IEC 60083 standardised socket (phase
+ neutral + earth) or in accordance with
installation requirements. The green/yellow
safety conductor is connected to the
appliance’s terminal and must be connected to
the installation’s earth system.
4
In order to easily locate the reference
information for your appliance, we recommend
that you make a note of it on the “After-Sales
Service” page.
If the appliance has an electrical plug, it must
remain accessible after the appliance has been
built in.
The oven’s neutral conductor (blue wire) must
be connected to the system’s neutral conductor.
It must be possible to disconnect the appliance
from the power supply, either using a plug or by
fitting a switch on the fixed wiring system in
accordance with installation rules.
If the power cable is damaged, it should be
replaced by the manufacturer, its after-sales
service department or by a similar qualified
person, to avoid danger.
Wa r n i ng :
W e c a n n o t b e h e l d r e s p o n s i b l e f o r a n y
a c c i d e n t r e s u l t i n g f r o m a n o n - e x i s t e n t , f a u l t y o r
i n c o r r e c t e a r t h .
If t h e r e a r e a n y p r o b l e m s w i t h t h e o v e n , u n p l u g
i t o r r e m o v e t h e f u s e c o r r e s p o n d i n g t o t h e ov e n
s u p p l y w i r e .
