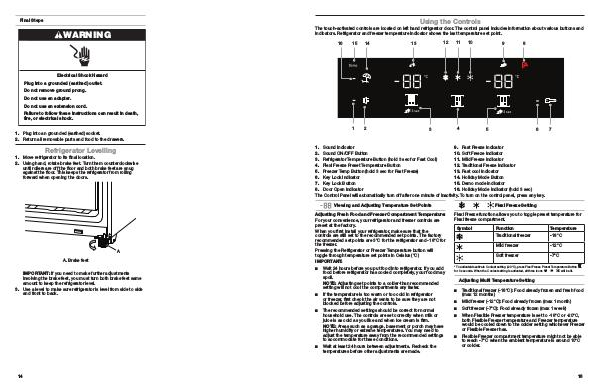

Using the Controls
The touch-activated controls are located on left hand refrigerator door. The control panel includes information about various buttons and
indicators. Refrigerator and freezer temperature indicator shows the last temperature set point.
16
15 14
1 2
12
13
3
11
10
4
9
8
5
6
7
1. Sound Indicator
9. Fast Freeze Indicator
2. Sound ON/OFF Button
10. Soft Freeze Indicator
3. Refrigerator Temperature Button (hold 3 sec for Fast Cool)
11. Mild Freeze Indicator
4. Flexi Freeze Preset Temperature Button
12. Traditional Freeze Indicator
5. Freezer Temp Button (hold 3 sec for Fast Freeze)
13. Fast cool Indicator
6. Key Lock Indicator
14. Holiday Mode Button
7. Key Lock Button
15. Demo mode Indicator
8. Door Open Indicator
16. Holiday Mode Indicator (hold 3 sec)
The Control Panel will automatically turn off after one minute of inactivity. To turn on the control panel, press any key.
Viewing and Adjusting Temperature Set Points
Adjusting Fresh Food and Freezer Compartment Temperature:
For your convenience, your refrigerator and freezer controls are
preset at the factory.
When you first install your refrigerator, make sure that the
controls are still set to the recommended set points. The factory
recommended set points are 3°C for the refrigerator and -18°C for
the freezer.
Pressing the Refrigerator or Freezer Temperature button will
toggle through temperature set points in Celsius (°C)
IMPORTANT:
■ ■
■ ■
■ ■
■ ■
Wait 24 hours before you put food into refrigerator. If you add
food before refrigerator has cooled completely, your food may
spoil.
NOTE: Adjusting set points to a colder-than recommended
setting will not cool the compartments any faster.
If the temperature is too warm or too cold in refrigerator
or freezer, first check the air vents to be sure they are not
blocked before adjusting the controls.
The recommended settings should be correct for normal
household use. The controls are set correctly when milk or
juice is as cold as you like and when ice cream is firm.
NOTE: Areas such as a garage, basement or porch may have
higher humidity or extreme temperatures. You may need to
adjust the temperature away from the recommended settings
to accommodate for these conditions.
Wait at least 24 hours between adjustments. Recheck the
temperatures before other adjustments are made.
Flexi Freeze Setting
Flexi Freeze function allows you to toggle preset temperature for
Flexi freeze compartment.
Symbol
Function Temperature
Traditional freezer -18°C
Mild freezer -12°C
Soft freezer -7°C
* To activate/deactivate Coolest setting (-20°C), press Flexi Freeze Preset Temperature Button
for 3 seconds. When the Coolest setting is activated, all three icons
will be lit.
Adjusting Multi Temperature Setting
■ ■ Traditional freezer (-18°C): Food already frozen and fresh food
(max 12 months)
■ ■ Mild freezer (-12°C): Food already frozen (max 1 month)
■ ■ Soft freezer (-7°C): Food already frozen (max 1 week)
■ ■ When Flexible Freezer temperature is set to -18°C or -20°C,
both Flexible Freezer temperature and Freezer temperature
would be cooled down to the colder setting whichever Freezer
or Flexible Freezer has.
■ ■ Flexible Freezer compartment temperature might not be able
to reach -7°C when the ambient temperature is around 10°C
or colder.
