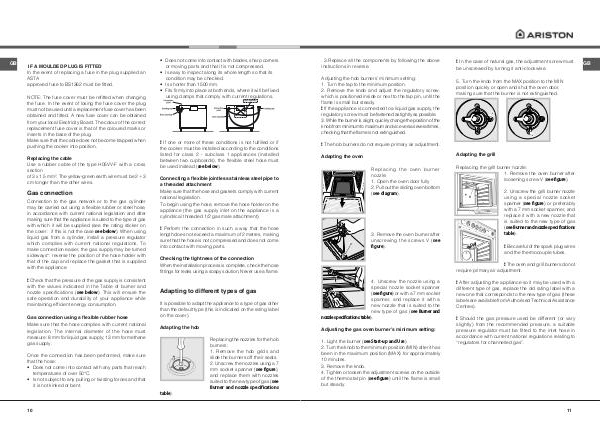

. 3.Replace all the components by following the above
instructions in reverse.
Adjusting the hob burners’ minimum setting:
1. Turn the tap to the minimum position.
2. Remove the knob and adjust the regulatory screw,
which is positioned inside or next to the tap pin, until the
flame is small but steady.
! If the appliance is connected to a liquid gas supply, the
regulatory screw must be fastened as tightly as possible.
3. While the burner is alight, quickly change the position of the
knob from minimum to maximum and vice versa several times,
checking that the flame is not extinguished.
! In the case of natural gas, the adjustment screw must
be unscrewed by turning it anti-clockwise.
5. Turn the knob from the MAX position to the MIN
position quickly or open and shut the oven door,
making sure that the burner is not extinguished.
! The hob burners do not require primary air adjustment.
Adapting the grill
Adapting the oven
Replacing the oven burner
nozzle:
1. Open the oven door fully
2. Pull out the sliding oven bottom
(see diagram).
V
Replacing the grill burner nozzle:
1. Remove the oven burner after
loosening screw V (see fi gure).
2. Unscrew the grill burner nozzle
using a special nozzle socket
spanner (see fi gure) or preferably
with a 7 mm socket spanner, and
replace it with a new nozzle that
is suited to the new type of gas
(see Burner and nozzle specifi cations
table).
V
3. Remove the oven burner after
unscrewing the screws V (see
fi gure).
! Be careful of the spark plug wires
and the thermocouple tubes.
I
! The oven and grill burners do not
require primary air adjustment.
4. Unscrew the nozzle using a
special nozzle socket spanner
(see fi gure) or with a 7 mm socket
spanner, and replace it with a
new nozzle that is suited to the
new type of gas (see Burner and
nozzle specifi cations table).
Adjusting the gas oven burner’s minimum setting:
1. Light the burner (see Start-up and Use).
2. Turn the knob to the minimum position (MIN) after it has
been in the maximum position (MAX) for approximately
10 minutes.
3. Remove the knob.
4. Tighten or loosen the adjustment screws on the outside
of the thermostat pin (see fi gure) until the flame is small
but steady.
! After adjusting the appliance so it may be used with a
different type of gas, replace the old rating label with a
new one that corresponds to the new type of gas (these
labels are available from Authorised Technical Assistance
Centres).
! Should the gas pressure used be different (or vary
slightly) from the recommended pressure, a suitable
pressure regulator must be fitted to the inlet hose in
accordance with current national regulations relating to
“regulators for channelled gas”.
11
GB
