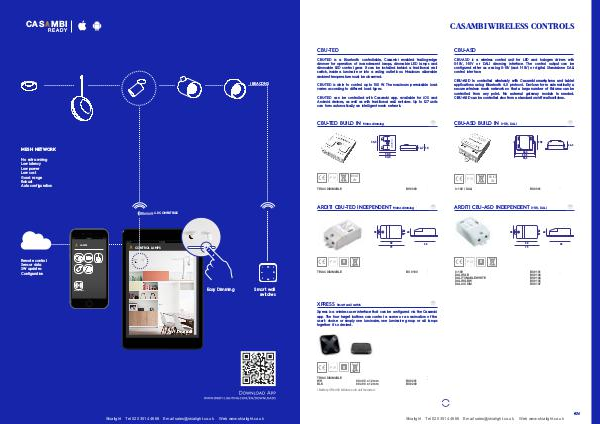

CBU-TED

CBU-TED is a Bluetooth controllable, Casambi enabled trailing-edge dimmer for operation of incandescent lamps, dimmable LED lamps and dimmable LED control gear. It can be installed behind a traditional wall switch, inside a luminaire or into a ceiling outlet box. Maximum allowable ambient temperature must be observed.

CBU-TED is able to control up to 150 W. The maximum permissible load varies according to different load types.

CBU-TED can be controlled with Casambi app, available for iOS and Android devices, as well as with traditional wall switches. Up to 127 units can form automatically an intelligent mesh network.

CBU-ASD

CBU-ASD is a wireless control unit for LED and halogen drivers with 0-10V, 1-10V or DALI dimming interface. The control output can be configured either as analog 0-10V( and 1-10V) or digital Standalone DALI control interface.

CBU-ASD is controlled wirelessly with Casambi smartphone and tablet applications using Bluetooth 4.0 protocol. Devices form automatically a secure wireless mesh network so that a large number of fixtures can be controlled from any point. No external gateway module is needed. CBU-ASD can be controlled also from a standard on / off wall switches.

CBU-TED BUILD IN Mains dimming

CBU-ASD BUILD IN 0-10V, DALI

BUILT IN

BUILT IN

TRIAC DIMMABLE BS9000

0-10V / DALI BS9001

ARDITI CBU-TED INDEPENDENT Mains dimming ARDITI CBU-ASD INDEPENDENT 0-10V, DALI

Xpress is a wireless user interface that can be configured via the Casambi app. The four target buttons can control a scene or an animation of the user’ s choise or simply one luminaire, one luminaire group or all lamps together if so desired.

! Battery CR2430 Lithium coin cell included
