FRAME LOW

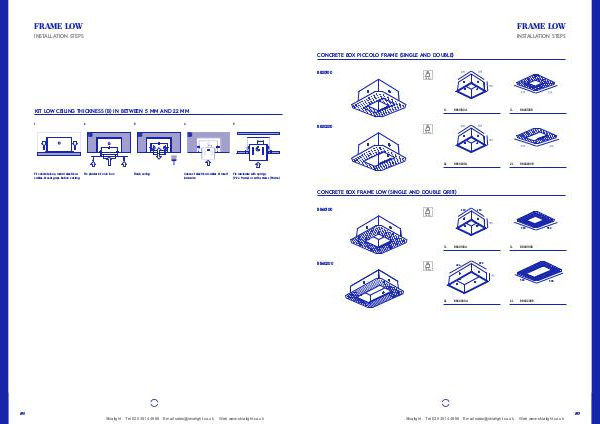

INSTALLATION STEPS
KIT LOW CEILING THICKNESS (B) IN BETWEEN 5 MM AND 22 MM
148
1 2 3 4 5
Fit concrete box, install electrical
cables & seal gaps before casting Fix plaster kit onto box Finish ceiling Connect electrical cables & insert
luminaire Fix luminaire with springs
(Picc. frame) or with screws (Frame)
