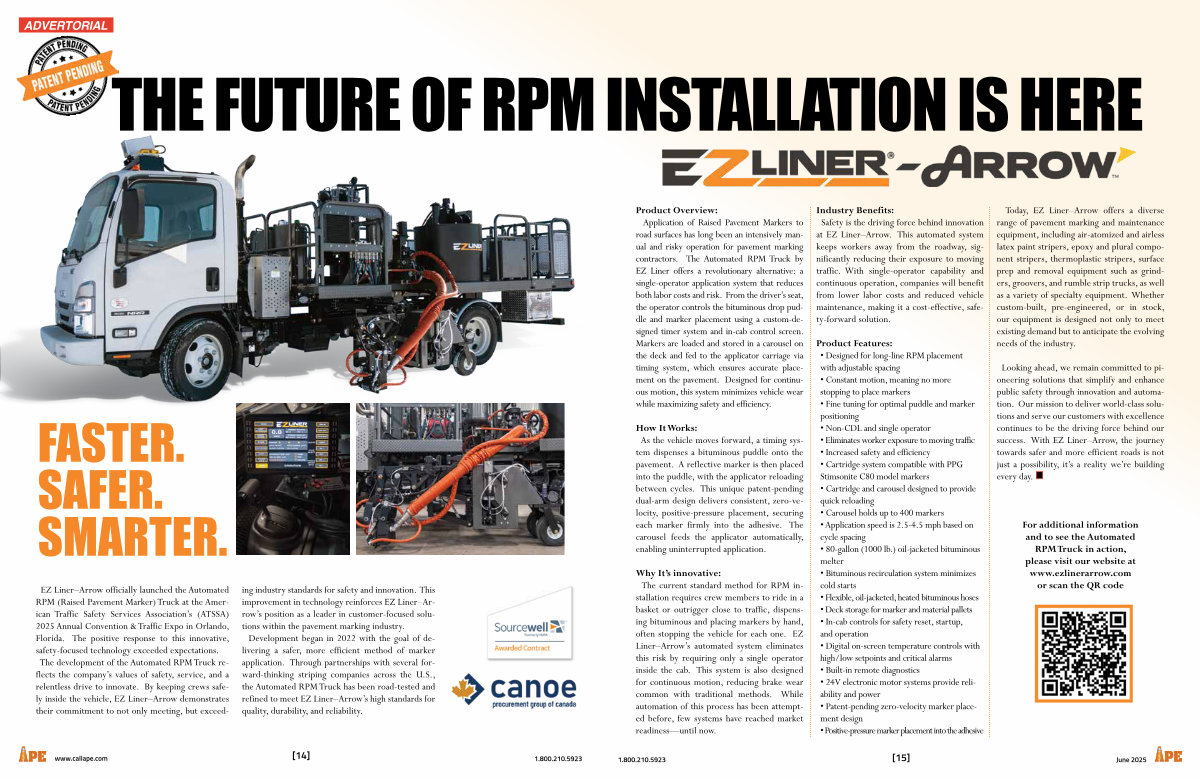

INSTALLATION IS HERE
Product Overview: Application of Raised Pavement Markers to road surfaces has long been an intensively manual and risky operation for pavement marking contractors. The Automated RPM Truck by EZ Liner offers a revolutionary alternative: a single-operator application system that reduces both labor costs and risk. From the driver’ s seat, the operator controls the bituminous drop puddle and marker placement using a custom-designed timer system and in-cab control screen. Markers are loaded and stored in a carousel on the deck and fed to the applicator carriage via timing system, which ensures accurate placement on the pavement. Designed for continuous motion, this system minimizes vehicle wear while maximizing safety and efficiency.
How It Works: As the vehicle moves forward, a timing system dispenses a bituminous puddle onto the pavement. A reflective marker is then placed into the puddle, with the applicator reloading between cycles. This unique patent-pending dual-arm design delivers consistent, zero-velocity, positive-pressure placement, securing each marker firmly into the adhesive. The carousel feeds the applicator automatically, enabling uninterrupted application.
Why It’ s innovative: The current standard method for RPM installation requires crew members to ride in a basket or outrigger close to traffic, dispensing bituminous and placing markers by hand, often stopping the vehicle for each one. EZ Liner – Arrow’ s automated system eliminates this risk by requiring only a single operator inside the cab. This system is also designed for continuous motion, reducing brake wear common with traditional methods. While automation of this process has been attempted before, few systems have reached market readiness— until now.
Industry Benefits: Safety is the driving force behind innovation at EZ Liner – Arrow. This automated system keeps workers away from the roadway, significantly reducing their exposure to moving traffic. With single-operator capability and continuous operation, companies will benefit from lower labor costs and reduced vehicle maintenance, making it a cost-effective, safety-forward solution.
Product Features:
• Designed for long-line RPM placement with adjustable spacing
• Constant motion, meaning no more stopping to place markers
• Fine tuning for optimal puddle and marker positioning
• Non-CDL and single operator
• Eliminates worker exposure to moving traffic
• Increased safety and efficiency
• Cartridge system compatible with PPG Stimsonite C80 model markers
• Cartridge and carousel designed to provide quick reloading
• Carousel holds up to 400 markers
• Application speed is 2.5-4.5 mph based on cycle spacing
• 80-gallon( 1000 lb.) oil-jacketed bituminous melter
• Bituminous recirculation system minimizes cold starts
• Flexible, oil-jacketed, heated bituminous hoses
• Deck storage for marker and material pallets
• In-cab controls for safety reset, startup, and operation
• Digital on-screen temperature controls with high / low setpoints and critical alarms
• Built-in remote diagnostics
• 24V electronic motor systems provide reliability and power
• Patent-pending zero-velocity marker placement design
• Positive-pressure marker placement into the adhesive
Today, EZ Liner – Arrow offers a diverse range of pavement marking and maintenance equipment, including air-atomized and airless latex paint stripers, epoxy and plural component stripers, thermoplastic stripers, surface prep and removal equipment such as grinders, groovers, and rumble strip trucks, as well as a variety of specialty equipment. Whether custom-built, pre-engineered, or in stock, our equipment is designed not only to meet existing demand but to anticipate the evolving needs of the industry.
Looking ahead, we remain committed to pioneering solutions that simplify and enhance public safety through innovation and automation. Our mission to deliver world-class solutions and serve our customers with excellence continues to be the driving force behind our success. With EZ Liner – Arrow, the journey towards safer and more efficient roads is not just a possibility, it’ s a reality we’ re building every day.
For additional information and to see the Automated RPM Truck in action, please visit our website at www. ezlinerarrow. com or scan the QR code
1.800.210.5923
[ 15 ] June 2025
