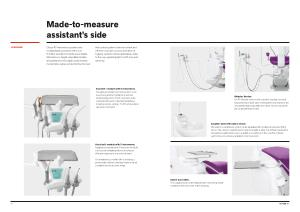

Made-to-measure assistant ’ s side
CONFIGURE
Classe R7 maximises assistant-side configurability . Solutions with a 3 or 5-holder assistant ’ s module are available . Mounted on a height-adjustable doublearticulated arm , this highly useful module incorporates a glass-protected touchscreen that controls patient chair movement and other key functions such as activation of hygiene systems ( where applicable ), water to the cup , operating light on / off , rinse and stand-by .
Assistant ’ s module with 5 instruments . The optional module has 5 instruments . It can assume any position needed to maximise working ergonomics . The 2 cannulae can be combined with up to 3 selected handpieces , including camera , syringe , T-LED curing lamp or a dynamic instrument .
Modular Version . On R7 Modular versions , the assistant ’ s module can easily be positioned on both sides of the patient chair thanks to the articulated height-adjustable arm which swivels around the pin located behind the seat .
Cuspidor bowl with optical sensor . The water-to-cup delivery system can be equipped with an optional automatic filling sensor . The ceramic cuspidor bowl is fully removable to allow fast , efficient sanitisation . A powered cuspidor bowl is also available as an optional . In this case the software synchronises rinse tasks and patient chair movement .
Assistant ’ s module with 3 instruments . Supplied as standard , the 3-instrument module can assume multiple positions , ensuring an effective response to every clinical need .
On ambidextrous models with a unit body , a positionable stainless steel tray holder module completes the accessories range .
Swivel tray holder . The cuspidor bowl can be replaced with a swivel tray holder installed on the front cover of the unit body .
34 CLASSE R7 .
