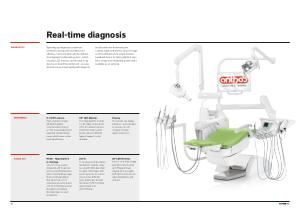

Real-time diagnosis

DIAGNOSTICS
Speeding up diagnostics optimises workflows and lays the foundation for effective communication with the patient . An integrated multimedia system - which includes LED monitor , camera and X-ray devices on board the dental unit - ensures dentists can proceed rapidly with diagnosis and illustrate the treatment plan . Cutting-edge instruments , device / image control software and a simple wireless handheld device for taking digital X-rays form a high-end integrated system that is available as an optional .
MULTIMEDIA C-U2 HD camera . High-resolution images aid dentist-patient communication . Easy to use ( no manual adjustment required ), slender design means distal zones can be reached with ease .
22 ” LED Monitor . The integrated 22 ” monitor can be cable-connected to a PC . A multitouch version , where the screen can be positioned via 2 different types of support , is also available .
Display . The monitor can display individual camera images or a mosaic of up to 4 images to make rapid comparisons .
RADIOLOGY
RXDC - HyperSphere technology . Intra-oral X-ray system integrated with the dental unit via a handheld wireless device . Outstanding images thanks to the parallelism that stems from 30 cm collimation and a focal spot of 0.4 mm . Rotating around the spherical coupling , the tube head can reach any position .
Zen-X . X-ray sensor incorporated in the dentist ’ s module , ready to use with USB cable . Able to capture HD images with low X-ray doses , the sensor comes in two different sizes . Able to be sanitised , the sensor is IP67 certified against water and dust infiltration .
22 ” LED Monitor . Full HD 16 : 9 1920 x 1080 pixel flat screen monitor with IPS panel to aid viewing from any angle . LED light sources ensure optimal brightness and contrast .
28 CLASSE A5 .
