31

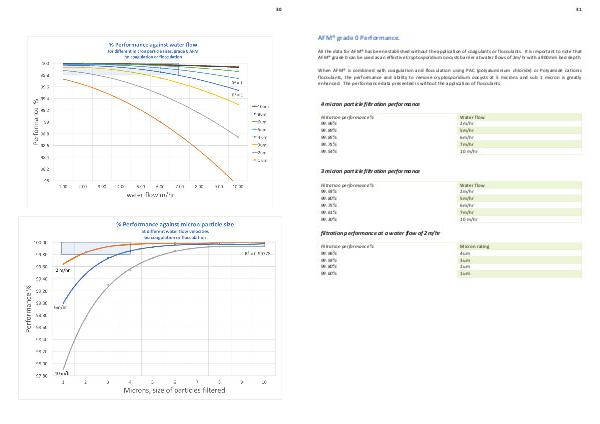

AFM® grade 0 Performance.
All the data for AFM® has been established without the application of coagulants or flocculants. It is important to note that
AFM® grade 0 can be used as an effective Cryptosporidium oocysts barrier at water flows of 2m/hr with a 900mm bed depth.
When AFM® is combined with coagulation and flocculation using PAC (polyaluminium chloride) or Polyamide cationic
flocculants, the performance and ability to remove cryptosporidium oocysts at 5 microns and sub 1 micron is greatly
enhanced. The performance data presented is without the application of flocculants.
4 micron particle filtration performance
Filtration performance %
Water flow
99.96%
2m/hr
99.89%
5m/hr
99.85%
6m/hr
99.75%
7m/hr
99.54%
10 m/hr
3 micron particle filtration performance
Filtration performance %
99.93%
99.80%
99.75%
99.61%
99.30%
Water flow
2m/hr
5m/hr
6m/hr
7m/hr
10 m/hr
filtration performance at a water flow of 2m/hr
Filtration performance %
99.96%
99.93%
99.80%
99.60%
Micron rating
4um
3um
2um
1um
