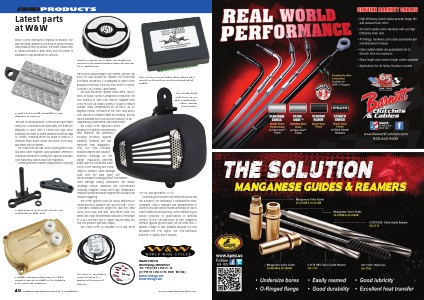

American Motorcycle Dealer AMD 171 October 2013 | Page 40

Latest parts
at W&W
W&W Cycles continues to expand its product line
and the latest addition to its array of parts includes
new products from IK Works. The kicker pedal from
IK Works features a steel shaft and the pedal is
available in cast aluminum or cast iron.
Chrome, Contrast Cut, or Black Ops finishes are
options on the Roland Sands Design Café gas cap
for XL applications

IK Works' kicker pedal is available in cast
aluminum or cast iron

The next IK Works product is the narrow style triple
trees. CNC machined from billet steel, the trees are
designed to work with 41.3mm fork legs. Once
installed, the center to center distance of the fork legs
is 170mm, meaning either no brake is used or a
centered drum brake wheel like those from early
Sportsters will be needed.
For those that like Old School styling W&W now
has MHC billet magneto caps available. Offered in
machined aluminum or brass, the caps are available
to fit Fairbanks, Morris and Hunt magnetos.
Catering for more modern tastes, W&W is carrying

IK Works narrow style triple trees are CNC
machined from billet steel

Available in brass or aluminum, MHC billet
magneto caps are available to fit Fairbanks,
Morris and Hunt magnetos

40

the Roland Sands Design Café master cylinder cap
from ’04 and onward XL models. CNC-machined
from billet aluminum, it is designed to match other
products in the RSD Café line, and come in Chrome,
Contrast Cut, or Black Ops finishes.
The JIMS Forceflow cylinder head cooler, now in
stock at W&W Cycles, is designed to help with the
cool running of Twin Cam motors. Adapted from
NASCAR race car brake coolers, it is said to reduce
cylinder head temperatures by as much as 37
degrees Celsius. It mounts in the horn area and a
horn relocater is hidden inside the housing. The fan
can be installed to turn on and off manually, or be
regulated by a thermostat controlled sensor.
The Crane HI-4N replaces Crane's
existing HI-4 ignition and has many
new features. The aluminum
housing protects against
vibration, moisture, dirt and
improves heat dissipation.
Also, the new housing
features degree and advance
direction markings on the
flange. Installation becomes
easier with the convenient cable
notch in the housing which also
helps to prevent cable damage.
Built onto the back plate, the
sensor/magnet housings protect the sensors
from damage during installation. The sensor
housings contain advanced flux concentrators
(intensify magnetic fields) with high temperature
resistant samarium/cobalt magnets for accurate and
reliable triggering.
The HI-4N ignition has four rotary switches for
mode selection, advance rate, and rev limit (1,5009,900rpm). Modes are: single fire, dual fire, OEM
curve, race curve, kick start, and electric start. For
street use Crane recommends coils with a minimum
of 2 ?. Coils with 4? or higher may be used, but
may not produce optimum output.
The Crane HI-4N is available to fit Big Twins

The Crane HI-4N replaces
Crane's existing HI-4
ignition with improved
features

AMERICAN MOTORCYCLE DEALER - OCTOBER 2013

The TLT-Moto CAN-switchbox allows aftermarket
controls to be used on current Dyna and Softail
models

The cylinder head
cooler from JIMS is
said to significantly
reduce running
temperatures

‘70-‘99, and Sportsters ‘71-’03.
Continuing on the electrical theme, W&W now has
the TLT-Moto CAN-switchbox. It simulates the stock
handlebar control modules and speedometers of
current Dyna and Softail models allowing the use of
custom switches and buttons, while maintaining all
factory functions. All push-buttons or switches
connect to the Can-switchbox at their respective
terminal against ground (GND) at the other end. A
speedo change is also possible because the box
simulates the CAN signal. The CAN-Switchbox
features 12 inputs, and 4 outputs.

W&W CYCLES
Wuerzburg, GERMANY
Tel: [phone]
(01149 931 250 6116 from the US)
[e-mail]
www.wwag.com
