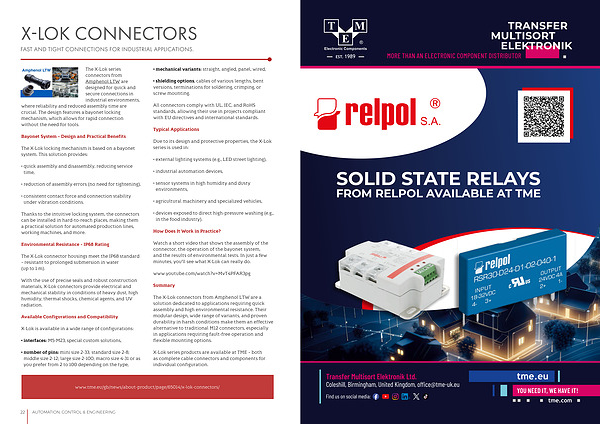

X-LOK CONNECTORS
FAST AND TIGHT CONNECTIONS FOR INDUSTRIAL APPLICATIONS.
The X-Lok series connectors from Amphenol LTW are designed for quick and secure connections in industrial environments, where reliability and reduced assembly time are crucial. The design features a bayonet locking mechanism, which allows for rapid connection without the need for tools.
Bayonet System – Design and Practical Benefits
The X-Lok locking mechanism is based on a bayonet system. This solution provides:
• quick assembly and disassembly, reducing service time,
• reduction of assembly errors( no need for tightening),
• consistent contact force and connection stability under vibration conditions.
Thanks to the intuitive locking system, the connectors can be installed in hard-to-reach places, making them a practical solution for automated production lines, working machines, and more.
Environmental Resistance – IP68 Rating
The X-Lok connector housings meet the IP68 standard – resistant to prolonged submersion in water( up to 1 m).
With the use of precise seals and robust construction materials, X-Lok connectors provide electrical and mechanical stability in conditions of heavy dust, high humidity, thermal shocks, chemical agents, and UV radiation.
Available Configurations and Compatibility
X-Lok is available in a wide range of configurations:
• interfaces: M5-M23, special custom solutions,
• number of pins: mini size 2-33; standard size 2-8; middle size 2-12; large size 2-100; macro size 4-31 or as you prefer from 2 to 100 depending on the type,
• mechanical variants: straight, angled, panel, wired,
• shielding options, cables of various lengths, bent versions, terminations for soldering, crimping, or screw mounting.
All connectors comply with UL, IEC, and RoHS standards, allowing their use in projects compliant with EU directives and international standards.
Typical Applications
Due to its design and protective properties, the X-Lok series is used in:
• external lighting systems( e. g., LED street lighting),
• industrial automation devices,
• sensor systems in high humidity and dusty environments,
• agricultural machinery and specialized vehicles,
• devices exposed to direct high-pressure washing( e. g., in the food industry).
How Does It Work in Practice?
Watch a short video that shows the assembly of the connector, the operation of the bayonet system, and the results of environmental tests. In just a few minutes, you’ ll see what X-Lok can really do.
www. youtube. com / watch? v = MvT4PFAR3pg
Summary
The X-Lok connectors from Amphenol LTW are a solution dedicated to applications requiring quick assembly and high environmental resistance. Their modular design, wide range of variants, and proven durability in harsh conditions make them an effective alternative to traditional M12 connectors, especially in applications requiring fault-free operation and flexible mounting options.
X-Lok series products are available at TME – both as complete cable connectors and components for individual configuration.
www. tme. eu / gb / news / about-product / page / 65014 / x-lok-connectors /
