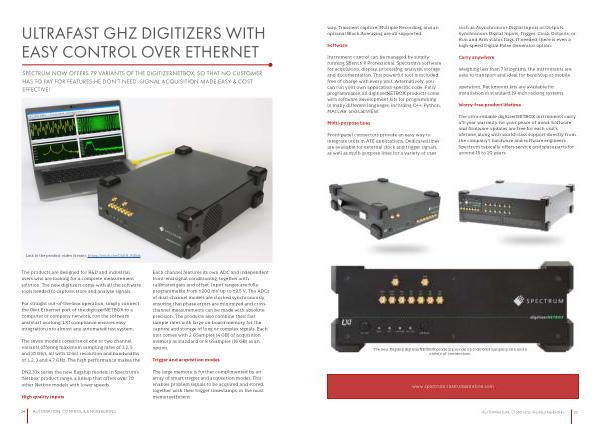

ULTRAFAST GHZ DIGITIZERS WITH EASY CONTROL OVER ETHERNET
SPECTRUM NOW OFFERS 79 VARIANTS OF THE DIGITIZERNETBOX, SO THAT NO CUSTOMER HAS TO PAY FOR FEATURES HE DON’ T NEED. SIGNAL ACQUISITION MADE EASY & COST EFFECTIVE!
Link to the product video( 4 min): https:// youtu. be / 01gtR _ RjBds
The products are designed for R & D and industrial users who are looking for a complete measurement solution. The new digitizers come with all the software tools needed to capture, store and analyse signals.
For straight out-of-the-box operation, simply connect the Gbit Ethernet port of the digitizerNETBOX to a computer or company network, run the software and start working. LXI compliance ensures easy integration into almost any automated test system.
The seven models comprise of one or two channel variants offering maximum sampling rates of 3.2, 5 and 10 GS / s, all with 12-bit resolution and bandwidths of 1, 2, 3 and 4.7 GHz. The high performance makes the
DN2.33x series the new flagship models in Spectrum’ s‘ Netbox’ product range, a lineup that offers over 70 other Netbox models with lower speeds.
High quality inputs
Each channel features its own ADC and independent front-end signal conditioning, together with calibrated gain and offset. Input ranges are fully programmable from ± 200 mV up to ± 2.5 V. The ADCs of dual-channel models are clocked synchronously, ensuring that phase errors are minimized and crosschannel measurements can be made with absolute precision. The products also combine their fast sample rates with large on-board memory for the capture and storage of long or complex signals. Each unit comes with 2 GSamples( 4 GB) of acquisition memory as standard or 8 GSamples( 16 GB) as an option.
Trigger and acquisition modes
The large memory is further complimented by an array of smart trigger and acquisition modes. This enables problem signals to be acquired and stored, together with their trigger timestamps, in the most memoryefficient
