A. Ferrari SpA ENG Overview of the main fittings | страница 29

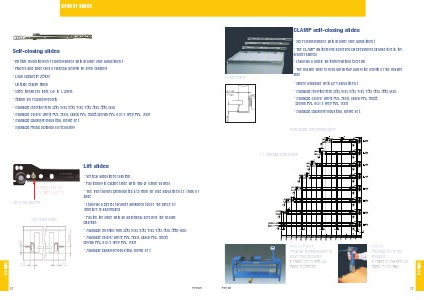

CLAMP self-closing slides
- Self-closing slides with drawer side adjustment
- The CLAMP fastening is achieved by pressing 3 brackets into the
drawer panels
- It allows a quick fastening without screws

CLAMP system

- The drawer slide is held uniformly along the length of the drawer
side
- Slides available with LIFT adjustment
- Available lengths: mm 250, 300, 350, 400, 450, 500, 550, 600.
- Available colors: white RAL 9001, black RAL 9005,
brown RAL 8017, grey RAL 7004
- Available packing: industrial, single set.

Roller drawer slides drilling pattern

T = St
