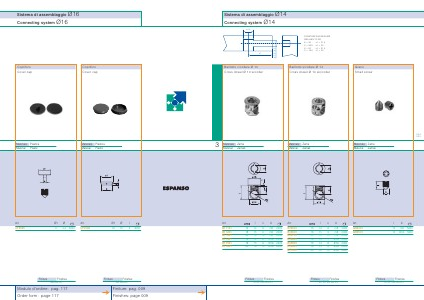

A. Ferrari SpA ENG Espanso Fittings Catalogue | Page 37

Sistema di assemblaggio Ø14 Connecting system Ø14
Sistema di assemblaggio Ø14 Connecting system Ø14
ø14 x1 ø 7.5- 8.5
FORATURE DA ESEGUIRE
DRILLING TO DO
X = 30
x1 = 31.5
X = 28.5
x1 = 30
X = 20
x1 = 21.5
X = 18.5
x1 = 20
Barilotto c / collare Ø 14 Cross dowel Ø 14 w / collar
Barilotto s / collare Ø 14 Cross dowel Ø 14 wo / collar
Grano Small screw
034 035

3
Materiale: Zama Material: Zamak
Materiale: Zama Material: Zamak
Materiale: Zama Material: Zamak
Art.
l
x
b
BT1101
16
14
8
m8 2000
BT1201
18
15
9
m8 2000
BT1301
20
16
10
m8 2000
BT1401
16
14
8
8mb 2000
BT1501
18
15
9
8mb 2000
BT1601
20
16
10
8mb 2000
Art. l x b
BT0501
16
14
8
m8 2000
BT0601
18
15
9
m8 2000
BT0701
20
16
10
m8 2000
BT3801
14
13
7
8mb 2000
BT0801
16
14
8
8mb 2000
BT0901
18
15
9
8mb 2000
BT1001
20
16
10
8mb 2000
Art.
l
b
GR0401
10
m8 5000
GR0501
10
8mb 5000
Finiture Finishes A1 B1 B2 B3 D1
Finiture Finishes A1 B1 B2 B3 D1
Finiture Finishes A1 B1 B2 B3 D1
