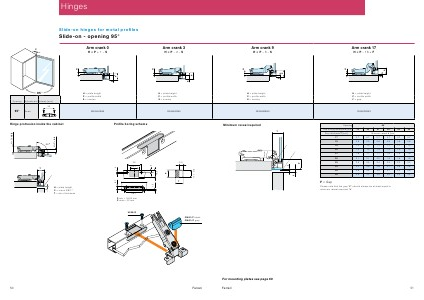

Hinges
P
Slide-on hinges for metal profiles
Slide-on- opening 95 °
Arm crank 0
H = P + 1 – S
Arm crank 3
H = P – 2 – S
95 °
Opening Adjustment Interax [ mm ]
95 ° Screw |
C95350AZGMG |
C95350HZGMG |
Hinge protrusion inside the cabinet
H + C + 13.5
95
H + C + 4.4
S
16.5
S
P
P
P
H
H
H = plate height P = profile width S = overlay
H = plate height P = profile width S = overlay
Profile boring scheme
( 10)
17.1 min
8.7
T
L |
H = plate height C = crank 3 / 9 / 17 T = door thickness |
48.7 |
1.3 |
|
|
P min = 18.50 mm P max = 22 mm |
|
|
|
V233 / G |
|
CM01 / F black CM01 / C grey
50 Ferrari
