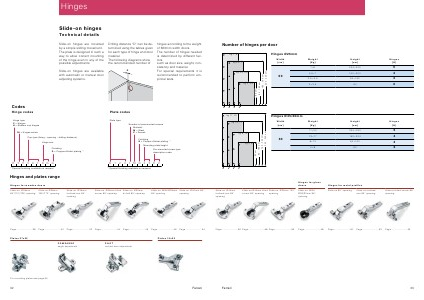

Hinges
Slide-on hinges
Technical details
Slide-on hinges are mounted by a simple sliding movement. The plate is designed in such a way to allow correct mounting of the hinge even in any of the possible adjustments
Slide-on hinges are available with automatic or manual door adjusting systems.
Drilling distance“ D” can be determined using the tables given for each type of hinge and door material. The following diagrams show the recommended number of
D hinges according to the weight of 600mm width doors. The number of hinges needed is determined by different factors such as door size, weight, consistency and material. For special requirements it is recommended to perform empirical tests.
Codes
Hinge codes Plate codes
Hinge type C = Hinges H = Shallow cup hinges
95 = Hinges series Cup type( fixing- opening- drilling distance)
Hinge arm
Finishing G = Copper + Nickel plating(*)
Plate type Number of premounted screws
Material M = Steel Z = Zamak
Finishing G = Copper + Nickel plating(*)
Mounting plate height
Pre-mounted screw type description code
H 9 5 0 8 7 A G G
(*) Special finishing available on request
B 1 2 4 1 M G 4 5 E 2
(*)
Special finishing available on request
Hinges and plates range
Hinges for wooden doors
Slide-on Ø35mm 95 °/ 110 °/ 125 ° opening |
Slide-on Ø35mm 165 °/ 170 ° opening |
Slide-on Ø35mm inclined arm 95 ° opening |
Slide-on Ø35mm blind corner 95 ° opening
Slide-on Ø35mm bi-fold 95 ° opening
|
Slide-on MINI Ø26mm 95 ° opening |
Slide-on Ø40mm 95 ° opening |
Page........................ 38 Page........................ 40 Page........................ 42 Page........................ 44 Page........................ 45 Page........................ 46 Page........................ 54
Plates 37x32 Plates 10x32
COMPASSO angle adjustment
PILOT vertical cam adjustment
For mounting plates see page 60
