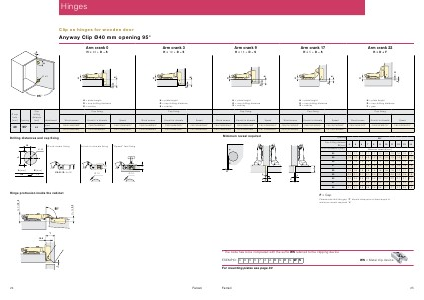

Arm crank 9
H = 13 + D – S
Arm crank 17 H = 5 + D – S
Arm crank 22 H = D + F
D
D
F
D
H = plate height D = cup drilling distance S = overlay
H = plate height D = cup drilling distance S = overlay
H = plate height D = cup drilling distance F = gap
Cup fixing Cup fixing Cup fixing
Wood screws Knock-in dowels Speed Wood screws Knock-in dowels Speed Wood screws Knock-in dowels Speed C90074BMGMG * C90076BMGMG * C90102BMGMG * C90074CMGMG * C90076CMGMG * C90102CMGMG * C90074FMGZG * C90076FMGZG * C90102FMGZG * C91074BMGMG * C91076BMGMG * C91102BMGMG * C91074CMGMG * C91076CMGMG * C91102CMGMG *---
Minimum reveal required |
Opening 95 ° |
|
|
|
|
|
|
Cup drilling distance |
|
|
|
|
|
|
|
|
|
|
|
D [ mm ] |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
|
|
|
|
|
|
|
Door thickness T [ mm ] Minimum reveal L [ mm ] |
|
|
|
|
|
|
24 1.1 1.1 1.1 1.1 1.1 1.0 1.0 1.0 1.0 1.0 1.0 |
|
|
|
|
|
|
25 1.3 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.1 |
|
|
|
|
|
|
26 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.3 1.3 1.3 1.3 |
|
|
|
|
|
|
27 1.7 1.7 1.7 1.6 1.6 1.6 1.6 1.6 1.5 1.5 1.5 |
D |
L F |
L |
F |
L |
T |
28 1.9 1.9 1.9 1.8 1.8 1.8 1.8 1.8 1.7 1.7 1.7
29 2.2 2.1 2.1 2.1 2.0 2.0 2.0 2.0 1.9 1.9 1.9
30 2.4 2.4 2.4 2.3 2.3 2.2 2.2 2.2 2.1 2.1 2.1
31 2.8 2.7 2.6 2.6 2.5 2.5 2.5 2.4 2.4 2.4 2.3
|
|
|
|
|
|
|
32 3.7 3.1 2.9 2.8 2.8 2.8 2.7 2.7 2.7 2.6 2.6 |
|
|
|
|
|
|
F = Gap |
|
|
|
|
|
|
Please note that the gap“ F” should always be at least equal to minimum reveal required“ L” |
* The code has to be completed with the suffix WS referred to the clipping device ESEMPIO: C 9 0 0 7 4 A M G M G W S
WS = Metal clip device
For mounting plates see page 30
