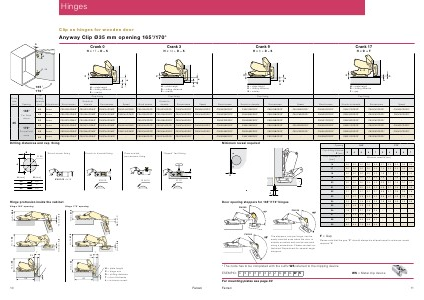

A. Ferrari SpA ENG Anyway Clip and Slide-On Hinges | Page 13

Crank 9 H = 8 + D – S
Crank 17
H = D + F
F
S
H
H
D
H = plate height D = drilling distance S = overlay
Cup fixing
D
H = plate height D = drilling distance F = gap
Cup fixing
Wood screws
Knock-in dowels
Euroscrews
Speed
Wood screws
Knock-in dowels
Euroscrews
Speed
C90430BZGZG *
C90431BZGZG *
C90574BZGZG *
C90424BZGZG *
C90430CZGZG *
C90431CZGZG *
C90574CZGZG *
C90424CZGZG *
C90433BZGZG *
C90435BZGZG *
C90575BZGZG *
C90416BZGZG *
C90433CZGZG *
C90435CZGZG *
C90575CZGZG *
C90416CZGZG *
C90437BZGZG *
C90439BZGZG *
C90576BZGZG *
-
C90437CZGZG *
C90439CZGZG *
C90576CZGZG *
-
C90300BZGZG *
C90301BZGZG *
C90374BZGZG *
C90422BZGZG *
C90300CZGZG *
C90301CZGZG *
C90374CZGZG *
C90422CZGZG *
C90304BZGZG *
C90306BZGZG *
C90375BZGZG *
C90410BZGZG *
C90304CZGZG *
C90306CZGZG *
C90375CZGZG *
C90410CZGZG *
C90308BZGZG *
C90310BZGZG *
C90376BZGZG *
-
C90308CZGZG *
C90310CZGZG *
C90376CZGZG *
-
Minimum reveal required
D
L
F
Door opening stoppers for 165 °/ 170 ° hinges
FN095
T
FN125
Opening 165 ° 170 °
Cup drilling distance
P [ mm ]
3
4
5
6
7
3
4
5
6
7
Door thickness T [ mm ]
Minimum reveal L [ mm ]
16 0.0 0.0 0.0 0.0 0.0 0.1 0.0 0.0 0.0 0.0 17 0.0 0.0 0.0 0.0 0.0 1.0 0.0 0.0 0.0 0.0 18 0.0 0.0 0.0 0.0 0.0 1.9 1.1 0.0 0.0 0.0 19 0.0 0.0 0.0 0.0 0.0 2.9 1.7 0.6 0.0 0.0 20 0.0 0.0 0.0 0.0 0.0 3.9 2.7 1.6 0.7 0.0 21 0.0 0.0 0.0 0.0 0.0 4.8 3.7 2.6 2.2 0.8 22 0.1 0.1 0.1 0.1 0.1 5.8 4.7 3.6 2.6 1.8 23 0.2 0.2 0.6 0.0 0.0 6.8 5.7 4.6 3.6 2.8 24 0.4 0.4 0.5 0.5 0.6 7.8 6.6 5.6 4.6 3.8 25 0.7 0.8 0.9 1.5 1.7----- 26 1.8 2.7 3.1 2.9 2.5----- 27 5.1 4.9 4.4 3.8 3.8----- 28 6.7 6.1 5.4 4.8 4.2----- 29 9.2 8.5 7.5 6.5 5.5-----
FN150
The stoppers, one per hinge, can be easily inserted even when the door is already mounted and can be removed using a screwdriver. Please contact our technical Department for special angle stoppers.
F = Gap
Please note that the gap“ F” should always be at least equal to minimum reveal required“ L”
* The code has to be completed with the suffix WS referred to the clipping device ESEMPIO: C 9 0 3 0 4 A Z G M G W S
WS = Metal clip device
For mounting plates see page 30 Ferrari 11
