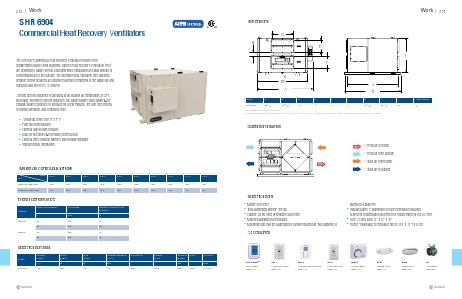

SHR 6904
Commercial Heat Recovery Ventilators
The SHR 6904 Commercial Heat Recovery Ventilation system (HRV)
complements today's tight buildings. Fantech Heat Recovery Ventilators (HRV)
are designed to supply air into a building while exhausting an equal amount of
contaminated air to the outside. The aluminum heat exchange core transfers
sensible energy between air steams resulting in tempering of the supply air and
reduced loads on the HVAC system.
A preset defrost sequence is activated at an outdoor air temperature of 23ºF
and lower. During the defrost sequence, the supply blower shuts down & the
exhaust blower continues to ventilate for a few minutes. The unit then returns
to normal operation, and continues cycle.
Airflow up to 687 cfm @ 0.4” Ps
Push-pull configuration
External low voltage contacts
Dual service doors & reversible electrical box
External three position switch (Low/Standby/Medium)
Improved BMS integration
•
•
•
•
•
•
Maximum continuous airflow
in.wg
0.3” Ps
0.4” Ps
0.5” Ps
0.6” Ps
0.7” Ps
0.8” Ps
0.9” Ps
1.0” Ps
1.1” Ps
1.2” Ps
Supply air flow (high)
722
687
651
615
580
544
508
472
437
401
Exhaust air flow (high)
722
687
651
615
580
544
508
472
437
401
cfm
Energy performance
Supply temperature
Net airflow
Apparent sensible effectiveness
F
cfm
%
35
690
63
35
518
68
95
690
47
95
518
49
Heating
O
Heating
Cooling
Specification data
Model
Voltage /
phase
V/~
W
A
cfm
SHR 6904
120 / 1
660
5.5
687
fantech
Rated
power
Max
amps
Average airflow @
0.4” Ps
Connection
Defrost
cycle
Shipping
weight
Side
Auto
255
Item #
lbs
List price
USD
40417
2,712.00
