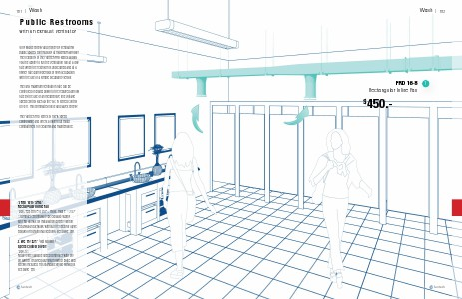

Public Restrooms
with an exhaust ventilator
Why waste energy and money by ventilating
public spaces continuously at maximum airflow?
The flexibility of the Fantech FRD series allows
you the ability to run the ventilation fan at a low
rate when the restroom is unoccupied and at a
higher rate during periods of high occupation
with the use of a simple occupancy sensor.
The fans maximum ventilation rate can be
controlled or dialed down to the required airflow
rate by the use of an inexpensive line voltage
speed control such as the WC15 Speed Control
On/Off. This eliminates noise and saves energy.
The Fantech FRD series is 100% speed
controllable and offers a swing out motor
compartment for cleaning and maintenance.
1. FRD 16-8 / $450.Rectangular Inline Fan
120V, 499 cfm @ 0.25 Ps, 150W, max Ps = 2.57"
A compact centrifugal type exhaust/supply
fan FRD allows for installation directly within
rectangular ductwork without the need for large
elbows or transitional sections. See page 188.
2. WC 15 / $24.- (not shown)
Speed Control On/Off
120V, 5A
Rotary type variable speed controller with on/
off switch. Brushed aluminum switch plate and
screws included. Fits standard single gang box.
See page 198.
