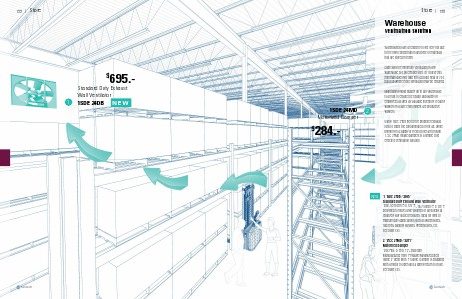

Warehouse
Ventilation solution
Warehouses have a tendency to get very hot due
to the high concentration and type of materials
that are stored in them.
Code says the minimum ventilation in any
warehouse is 0.06 cfm per sq.ft. Of course this
minimum does not take into account heat or VOC
build up where more ventilation may be required.
1SDE 24MD
Motorized Damper
Maintaining good quality air in any warehouse
is a must to ensure the health and safety of
employees as well as valuable inventory. Healthy
workers in a safe environment are productive
workers.
2
Using 1SDE 24DB Belt Drive propeller exhaust
fans to expel the contaminated or hot air, while
bringing in a supply of fresh cooler air through
1ACC 24MD intake dampers is a simple cost
effective ventilation solution.
284.-
$
NEW
1. 1SDE 24DB / $695.Standard Duty Exhaust Wall Ventilator
120V, 5910 cfm @ 0.125" Ps, 16,7 Sones @ 0.125" Ps
Designed to move large volumes of air quickly at
relatively low static pressures. Ideal for light to
medium duty applications such as warehouses,
factories, parking garages, greenhouses, etc.
See page XXX.
2. 1ACC 24MD / $284.Motorized Damper
120/240V, 0.19/0.11A, 3500 fpm
Manufactured from 14-gauge galvanized steel
frame 2" deep with 1" flange. Damper is equipped
with a motor to open and a spring return to close.
See page XXX.
