Cook

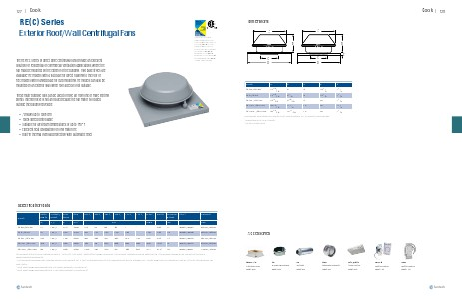

RE(C) Series
Exterior Roof/Wall Centrifugal Fans
Fantech, Inc. and Fantech
Limited certify that the RE (C)
Series shown herein is licensed
to bear the AMCA Seal. The
ratings shown are based on
tests and procedures performed
in accordance with AMCA
Publication 211 and AMCA
Publication 311 and comply with
the requirements of the AMCA
Certified Ratings Program.
The RE/REC Series of direct drive centrifugal fans provide an excellent
solution for residential or commercial ventilation applications where the
fan must be mounted on the exterior of the building. Two base styles are
available: RE models with a flat base for direct flashing to the roof or
REC models with flanged base for curb mounting. RE models can also be
mounted on an exterior wall when roof access is not suitable.
These multi-purpose fans can be used to move air from one or more venting
points. Interior noise is not an issue because the fan motor is located
outside the building envelope.
•
•
•
•
•
Airflows up to 1008 cfm
100% speed controllable
Suitable for airstream temperatures of up to 140° F
Excellent heat dissipation for long motor life
Built-in thermal overload protection with automatic reset
Specification data
Rated
power
Voltage /
phase
Max.
amps*
RPM
W
V/~
A
min-1
RE 54 / REC 54
19
120 / 1
0.18
RE 6 / REC 6
87
120 / 1
RE 8XL / REC 8XL
153
RE 10XL / REC 10XL
RE 10XLT / REC 10XLT
Model
0.0” Ps
.25” Ps
.50” Ps
3040
116
92
65
0.80
2700
227
199
120 / 1
1.40
2800
409
394
120 / 1
3.60
3250
531
120 / 1
4.86
2950
.75” Ps
1.0” Ps
1.5” Ps
Max Ps
36
1
-
-
3.5*
11
40228 / 40229
259.00 / 263.00
169
134
106
-
1.84
7.5*
14
40045 / 40046
263.00 / 268.00
356
307
259
212
130
2.23
8.9*
753
721
690
656
622
548
1008
949
890
831
766
609
cfm
Sones†
in.wg
Shipping
weight
Item #
lbs
List price
USD
19
40047 / 40098
361.00 / 367.00
4.03
16.4
‡
31
40215 / 40099
593.00 / 598.00
3.17
21.0 ‡
33
40230 / 40231
774.00 / 788.00
Performance certified is for installation type A - Free inlet, Free outlet. Speed (RPM) shown is nominal. Performance is based on actual speed of test. Performance ratings do not include the effects of
appurtenances (accessories).
†
The sound ratings shown are loudness values in fan sones at 5ft. (1.5m) in hemispherical free field calculated per AMCA Standard 301. Values shown are for installation Type A: free inlet hemispherical fan
sone levels.
*
Sone value shown was calculated at 0.5” (static pressure in inches W.G.).
‡
Sone value shown was calculated at 0.75” (static pressure in inches W.G.).
