483760 Edition II II | Page 112

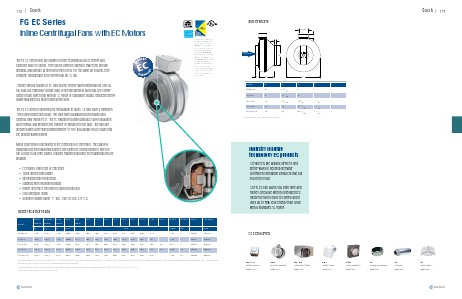

113 | Cook FG EC Series Inline Centrifugal Fans with EC Motors Fantech, Inc. certifies that the models shown herein are licensed to bear the AMCA Seal. The ratings are based on the tests and procedures performed in accordance with AMCA Publication 211 and comply with the requirements of the AMCA Certified Ratings Program. Performance certified is for installation type D – Ducted inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances (accessories). The FG EC Series fans are known for their economical use of energy and excellent ease of control. They can be varied in speed to match the airflow demand, and operate at high efficiency levels. For the same air volume, they consume considerably less energy than an AC fan. Another special feature of EC fans is their energy-saving potential not only at full load, but especially at part-load. When operating at part-load, the energy used is much lower than with an AC motor of equivalent output. Reduced energy usage guarantees a drop in operating costs. The FG EC series is designed for installation in ducts. All fans have a minimum 1 inch long connection collar. The fans have backward-curved blades and external rotor motors (EC). The FC mounting clamp facilitates easy installation and removal, and prevents the transfer of vibration to the duct. The fans are delivered with a pre-wired potentiometer (0-10V) that allows you to easily find the desired working point. Motor protection is integrated in the electronics of the motor. The casing is manufactured from galvanised sheet steel with the seams folded to give the fan a close to air tight casing. Outdoor mounting and wet room applications are possible. • • • • • • • EC-motors, high level of efficiency 100% speed controllable Integrated motor protection Supplied with mounting bracket Higher lifetime if the motor is speed controlled Cool operation leads Working voltage range 1~ 100...130V or 200..277 VAC Specification data FG 6M EC Rated power Voltage / phase Max amps RPM W Model V/~ A 120 / 1 1.32 2480 .0” Ps .1” Ps .2” Ps .4” Ps .6” Ps 4.25 363 349 330 302 271 min-1 77.6 CFM per W * .8” Ps 1.0” Ps 1.5” Ps 2.0” Ps Max Ps in.wg lbs 239 206 113 - 1.92 11 cfm Weight Item # List price 49900 367.00 USD FG 8 EC 75.5 120 / 1 1.32 2545 5.17 428 410 390 353 314 275 239 121 - 1.95 11 49901 394.00 FG 10 EC 90.5 120 / 1 1.32 2380 5.08 513 489 460 413 363 325 283 160 30 2.13 11 49902 485.00 FG 12 EC 141.2 120 / 1 2.10 2665 4.25 633 621 600 577 542 506 467 379 221 2.45 16 49903 645.00 FG 12XL EC 169.7 120 / 1 2.10 2510 4.42 805 780 750 686 615 537 474 315 - 1.96 16 49905 858.00 HVI Ratings @ 0.2” Static Pressure Only. Performance certified is for installation type D – Ducted inlet, Ducted outlet. Speed (RPM) shown is nominal. Performance based on actual speed of test. Performance ratings do not include the effect of appurtenance (accessories). Also available: FGC EC Series fans pre-wired with six foot cord and plug. Models include FGC 6M EC, FGC 8 EC or FGC 10 EC. * CFM per Watt is not certified by AMCA fantech
