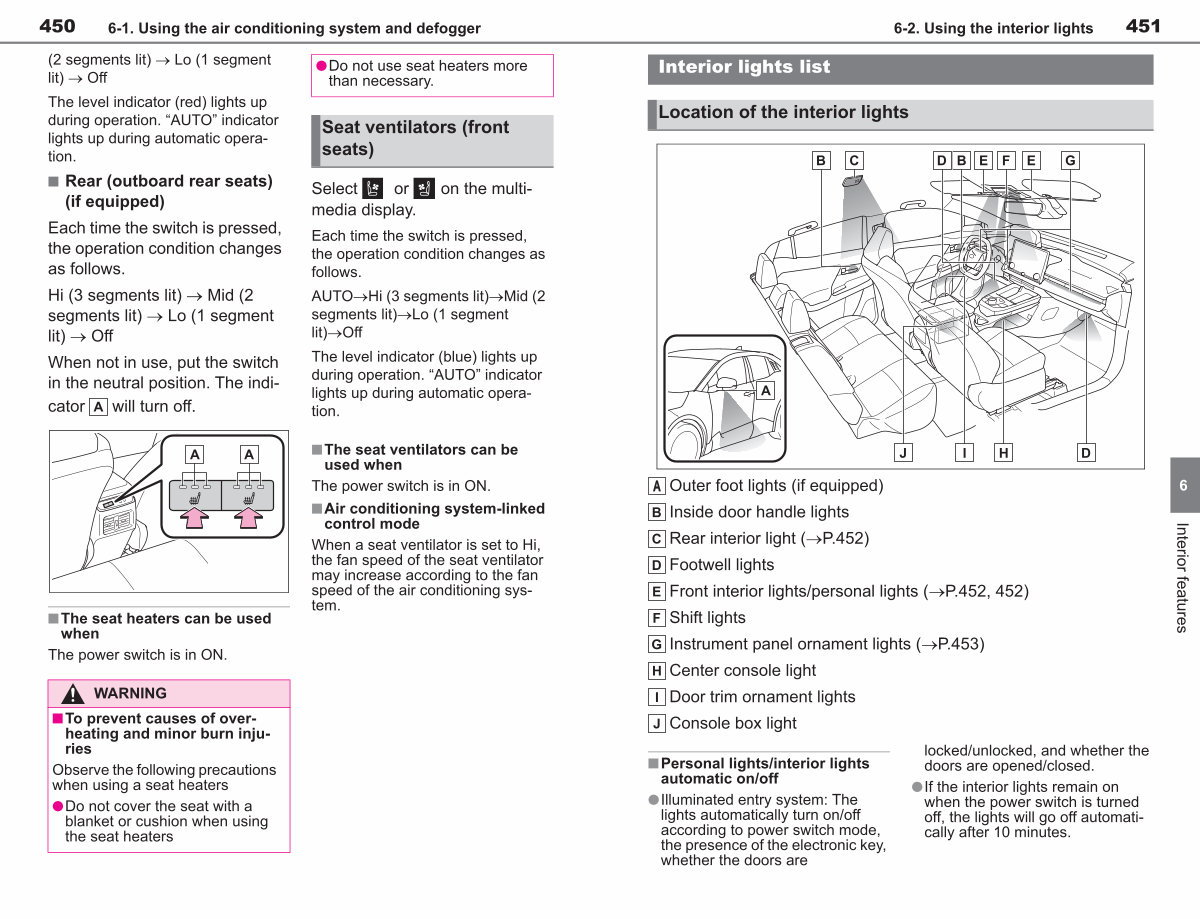

450 6-1. Using the air conditioning system and defogger
( 2 segments lit) � Lo( 1 segment lit) � Off
The level indicator( red) lights up during operation.“ AUTO” indicator lights up during automatic operation.
n Rear( outboard rear seats)( if equipped)
Each time the switch is pressed, the operation condition changes as follows.
Hi( 3 segments lit) � Mid( 2 segments lit) � Lo( 1 segment lit) � Off
When not in use, put the switch in the neutral position. The indicator will turn off.
n The seat heaters can be used when
The power switch is in ON. lDo not use seat heaters more than necessary.
Seat ventilators( front seats)
Select or on the multimedia display.
Each time the switch is pressed, the operation condition changes as follows.
AUTO�Hi( 3 segments lit) �Mid( 2 segments lit) �Lo( 1 segment lit) �Off
The level indicator( blue) lights up during operation.“ AUTO” indicator lights up during automatic operation.
nThe seat ventilators can be used when
The power switch is in ON.
nAir conditioning system-linked control mode
When a seat ventilator is set to Hi, the fan speed of the seat ventilator
may increase according to the fan speed of the air conditioning system.
WARNING
n To prevent causes of overheating and minor burn injuries
Observe the following precautions when using a seat heaters
lDo not cover the seat with a blanket or cushion when using the seat heaters
