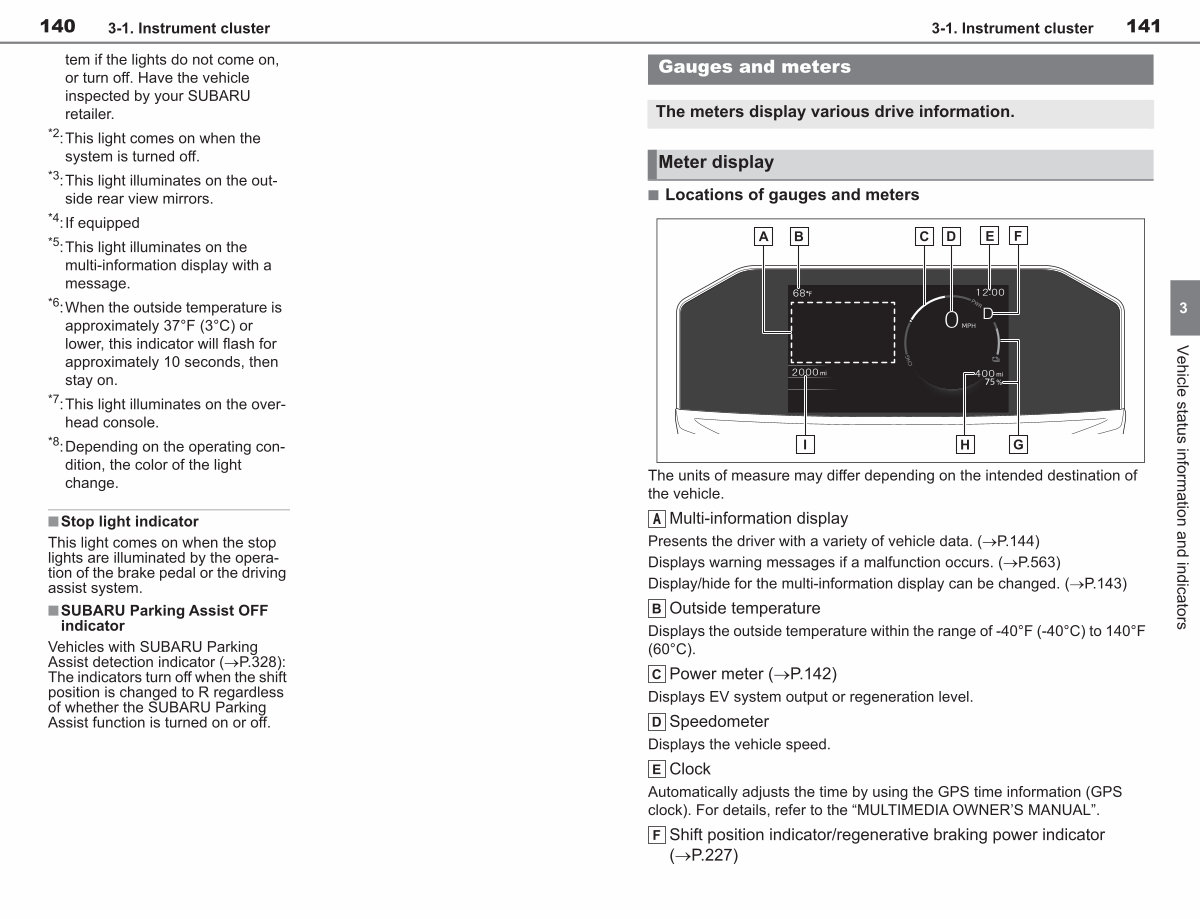

140 3-1. Instrument cluster
tem if the lights do not come on, or turn off. Have the vehicle inspected by your SUBARU retailer.
* 2: This light comes on when the
system is turned off.
* 3: This light illuminates on the outside rear view mirrors.
* 4: If equipped
* 5: This light illuminates on the
multi-information display with a message.
* 6: When the outside temperature is
approximately 37 ° F( 3 ° C) or lower, this indicator will flash for approximately 10 seconds, then stay on.
* 7: This light illuminates on the overhead console.
* 8: Depending on the operating condition, the color of the light change.
n Stop light indicator
This light comes on when the stop
lights are illuminated by the operation of the brake pedal or the driving
assist system.
n SUBARU Parking Assist OFF indicator
Vehicles with SUBARU Parking Assist detection indicator( �P. 328):
The indicators turn off when the shift position is changed to R regardless
of whether the SUBARU Parking Assist function is turned on or off.
