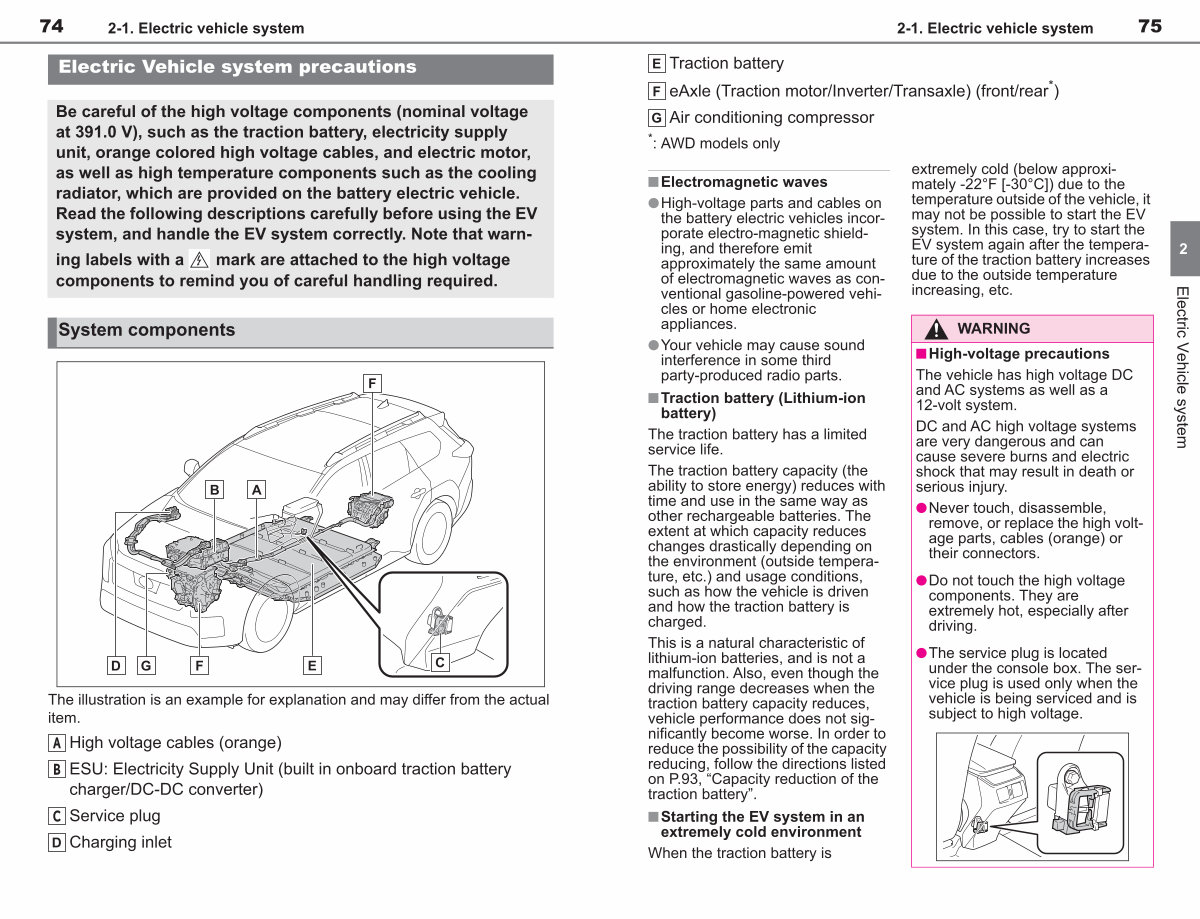

74 2-1. Electric vehicle system
Electric Vehicle system precautions
Be careful of the high voltage components( nominal voltage at 391.0 V), such as the traction battery, electricity supply unit, orange colored high voltage cables, and electric motor, as well as high temperature components such as the cooling radiator, which are provided on the battery electric vehicle. Read the following descriptions carefully before using the EV system, and handle the EV system correctly. Note that warning labels with a mark are attached to the high voltage components to remind you of careful handling required.
System components
The illustration is an example for explanation and may differ from the actual item.
A High voltage cables( orange)
B ESU: Electricity Supply Unit( built in onboard traction battery charger / DC-DC converter)
C Service plug Charging inlet
