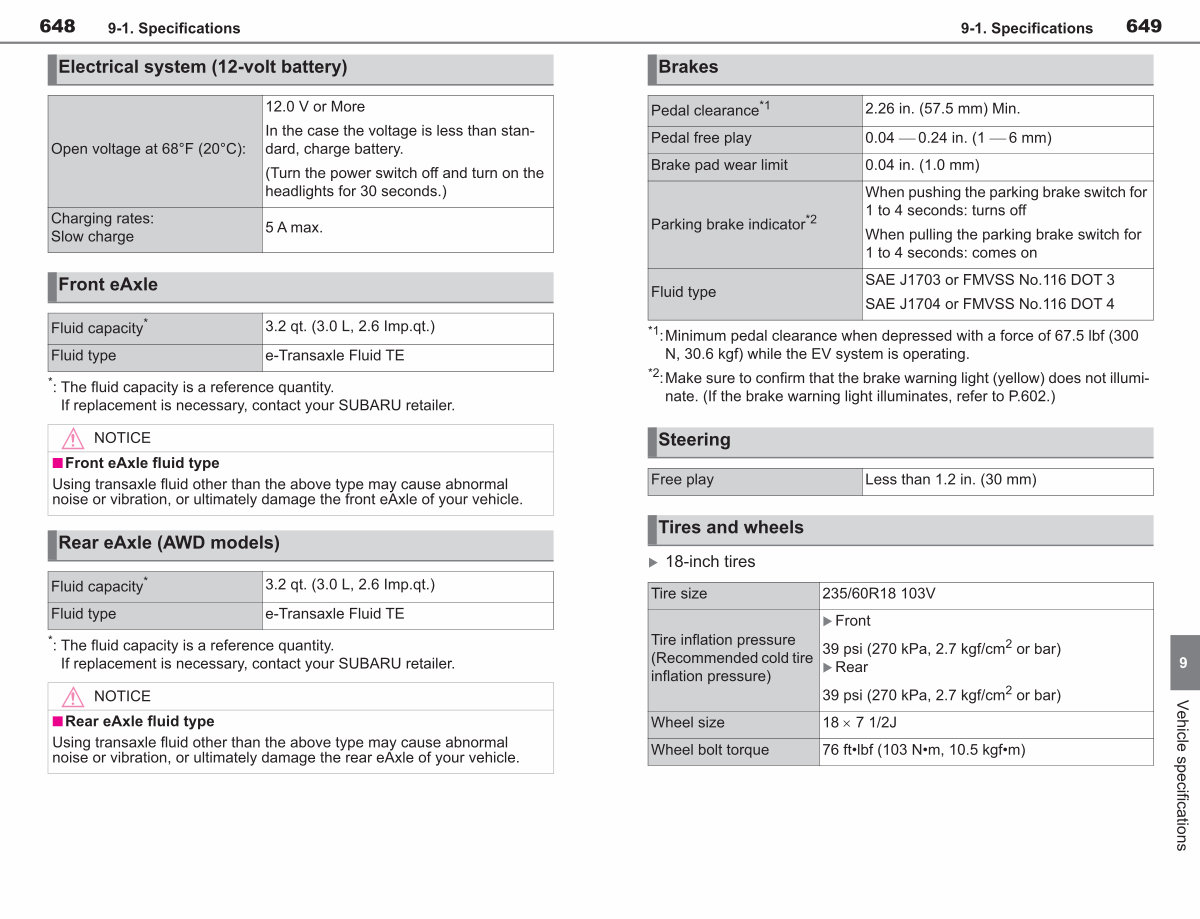

9-1. Specifications
649
Brakes
Pedal clearance * 1 2.26 in.( 57.5 mm) Min. Pedal free play 0.04 � 0.24 in.( 1 � 6 mm) Brake pad wear limit 0.04 in.( 1.0 mm)
Parking brake indicator * 2
Fluid type
When pushing the parking brake switch for 1 to 4 seconds: turns off
When pulling the parking brake switch for 1 to 4 seconds: comes on
* 1: Minimum pedal clearance when depressed with a force of 67.5 lbf( 300 N, 30.6 kgf) while the EV system is operating.
* 2: Make sure to confirm that the brake warning light( yellow) does not illuminate.( If the brake warning light illuminates, refer to P. 602.)
Steering
SAE J1703 or FMVSS No. 116 DOT 3 SAE J1704 or FMVSS No. 116 DOT 4
Free play Less than 1.2 in.( 30 mm)
Tires and wheels
� 18-inch tires Tire size
Tire inflation pressure( Recommended cold tire inflation pressure)
Wheel size
235 / 60R18 103V
� Front
39 psi( 270 kPa, 2.7 kgf / cm 2 or bar)
� Rear
39 psi( 270 kPa, 2.7 kgf / cm 2 or bar) 18 � 7 1 / 2J
Wheel bolt torque 76 ft • lbf( 103 N • m, 10.5 kgf • m)
9
Vehicle specifications
