646 |

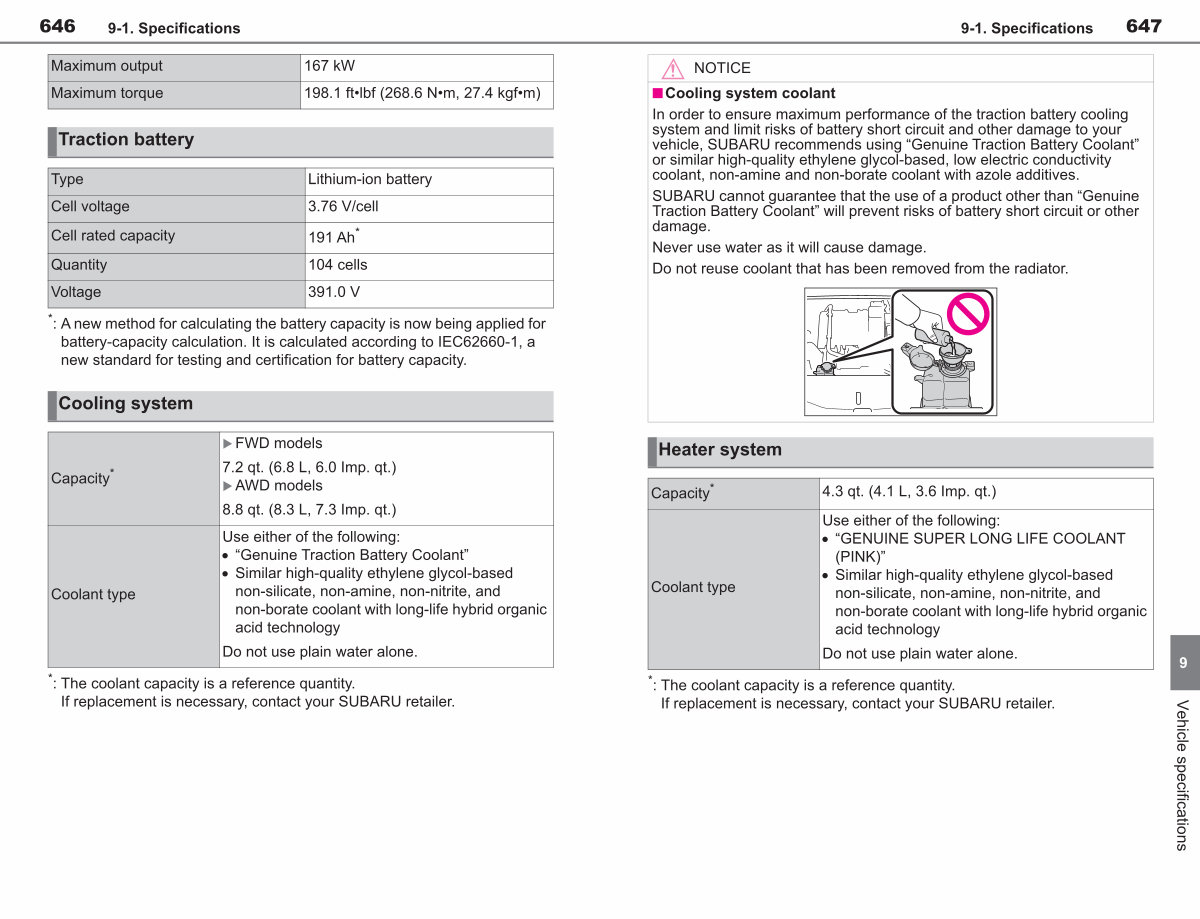

9-1. Specifications |
Maximum output |
167 kW |
Maximum torque |
198.1 ft • lbf( 268.6 N • m, 27.4 kgf • m) |
Traction battery
Type |
Lithium-ion battery |
Cell voltage |
3.76 V / cell |
Cell rated capacity |
191 Ah * |
Quantity Voltage
104 cells
391.0 V *: A new method for calculating the battery capacity is now being applied for
battery-capacity calculation. It is calculated according to IEC62660-1, a new standard for testing and certification for battery capacity.
Cooling system
Capacity *
Coolant type
� FWD models
7.2 qt.( 6.8 L, 6.0 Imp. qt.)
� AWD models
8.8 qt.( 8.3 L, 7.3 Imp. qt.)
Use either of the following: �“ Genuine Traction Battery Coolant” � Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology
Do not use plain water alone. *: The coolant capacity is a reference quantity. If replacement is necessary, contact your SUBARU retailer.
