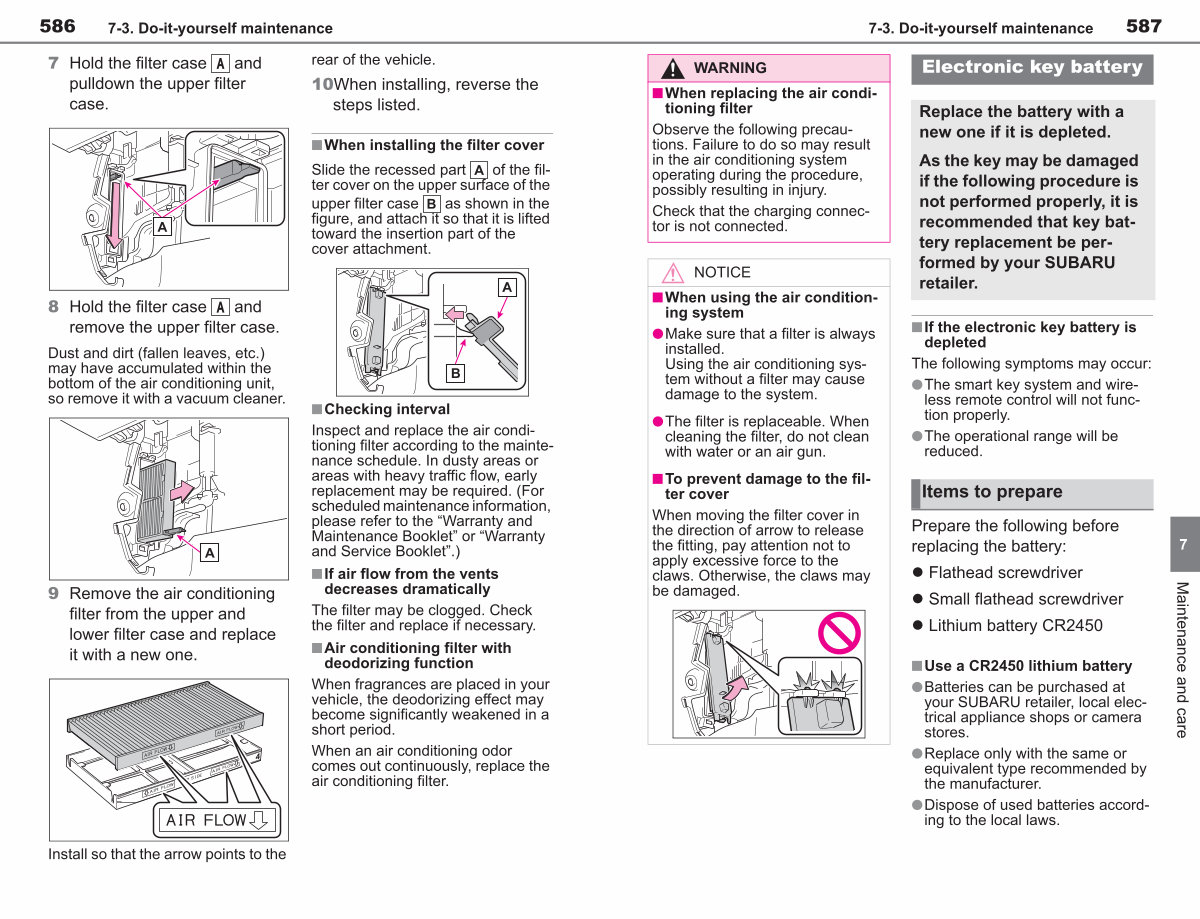

586 7-3. Do-it-yourself maintenance
7 Hold the filter case A and pulldown the upper filter case. rear of the vehicle.
10When installing, reverse the steps listed.
nWhen installing the filter cover
Slide the recessed part of the filter cover on the upper surface of the
upper filter case as shown in the figure, and attach it so that it is lifted toward the insertion part of the
cover attachment.
8 Hold the filter case A and remove the upper filter case.
Dust and dirt( fallen leaves, etc.) may have accumulated within the
bottom of the air conditioning unit, so remove it with a vacuum cleaner.
9 Remove the air conditioning filter from the upper and lower filter case and replace it with a new one. nChecking interval
Inspect and replace the air conditioning filter according to the maintenance schedule. In dusty areas or areas with heavy traffic flow, early replacement may be required.( For scheduled maintenance information, please refer to the“ Warranty and Maintenance Booklet” or“ Warranty and Service Booklet”.)
nIf air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
nAir conditioning filter with deodorizing function
When fragrances are placed in your vehicle, the deodorizing effect may become significantly weakened in a
short period.
When an air conditioning odor comes out continuously, replace the air conditioning filter.
Install so that the arrow points to the
