558 7-3. Do-it-yourself maintenance

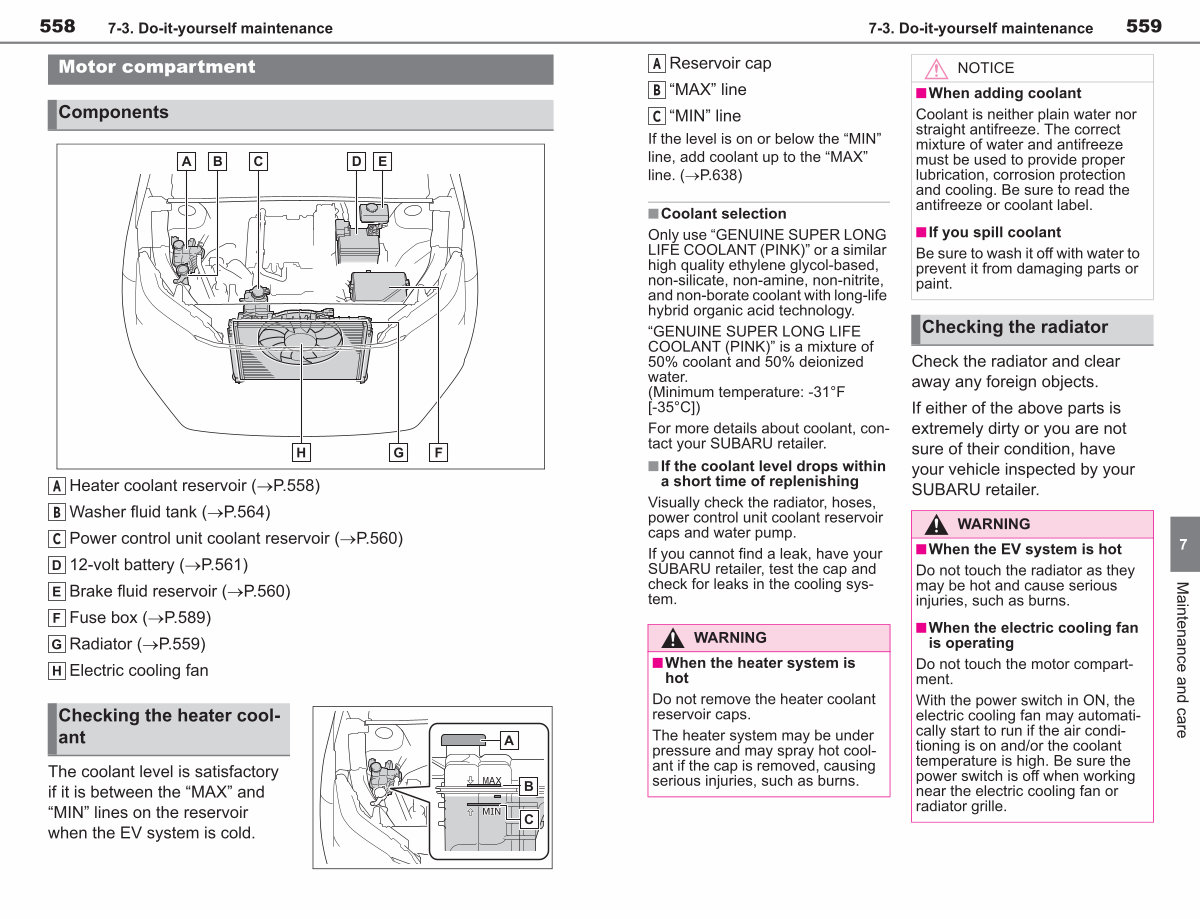

Motor compartment Components
A B C
Heater coolant reservoir( �P. 558) Washer fluid tank( �P. 564) Power control unit coolant reservoir( �P. 560) 12-volt battery( �P. 561) Brake fluid reservoir( �P. 560) Fuse box( �P. 589) Radiator( �P. 559) Electric cooling fan
Checking the heater coolant
The coolant level is satisfactory if it is between the“ MAX” and“ MIN” lines on the reservoir when the EV system is cold.
