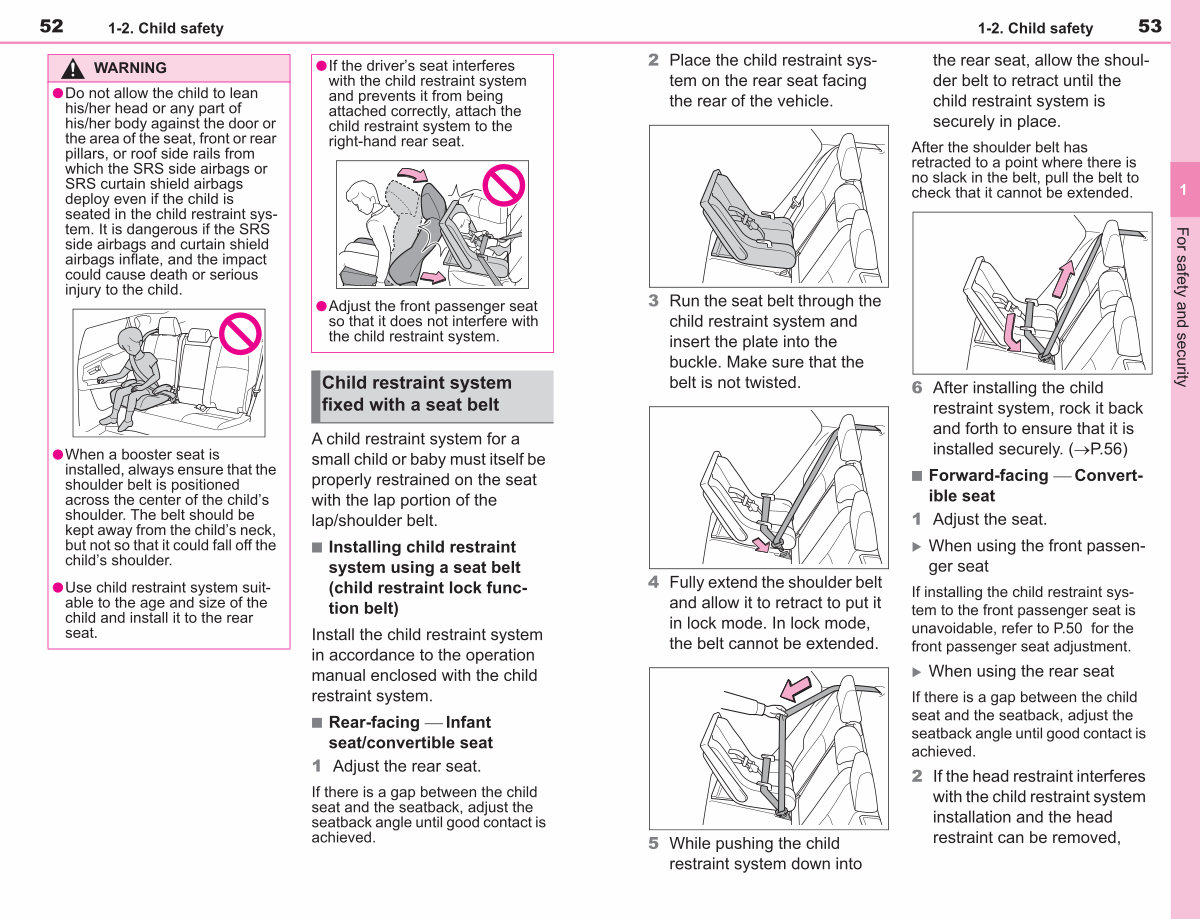

1-2. Child safety
53
2 Place the child restraint system on the rear seat facing the rear of the vehicle. the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place.
After the shoulder belt has retracted to a point where there is
no slack in the belt, pull the belt to check that it cannot be extended.
1
3 Run the seat belt through the child restraint system and insert the plate into the buckle. Make sure that the belt is not twisted.
4 Fully extend the shoulder belt and allow it to retract to put it in lock mode. In lock mode, the belt cannot be extended.
5 While pushing the child restraint system down into
6 After installing the child restraint system, rock it back and forth to ensure that it is installed securely.( �P. 56)
n Forward-facing � Convertible seat
1 Adjust the seat.
� When using the front passenger seat
If installing the child restraint system to the front passenger seat is unavoidable, refer to P. 50 for the front passenger seat adjustment.
� When using the rear seat
If there is a gap between the child seat and the seatback, adjust the seatback angle until good contact is achieved.
2 If the head restraint interferes with the child restraint system installation and the head restraint can be removed,
For safety and security
