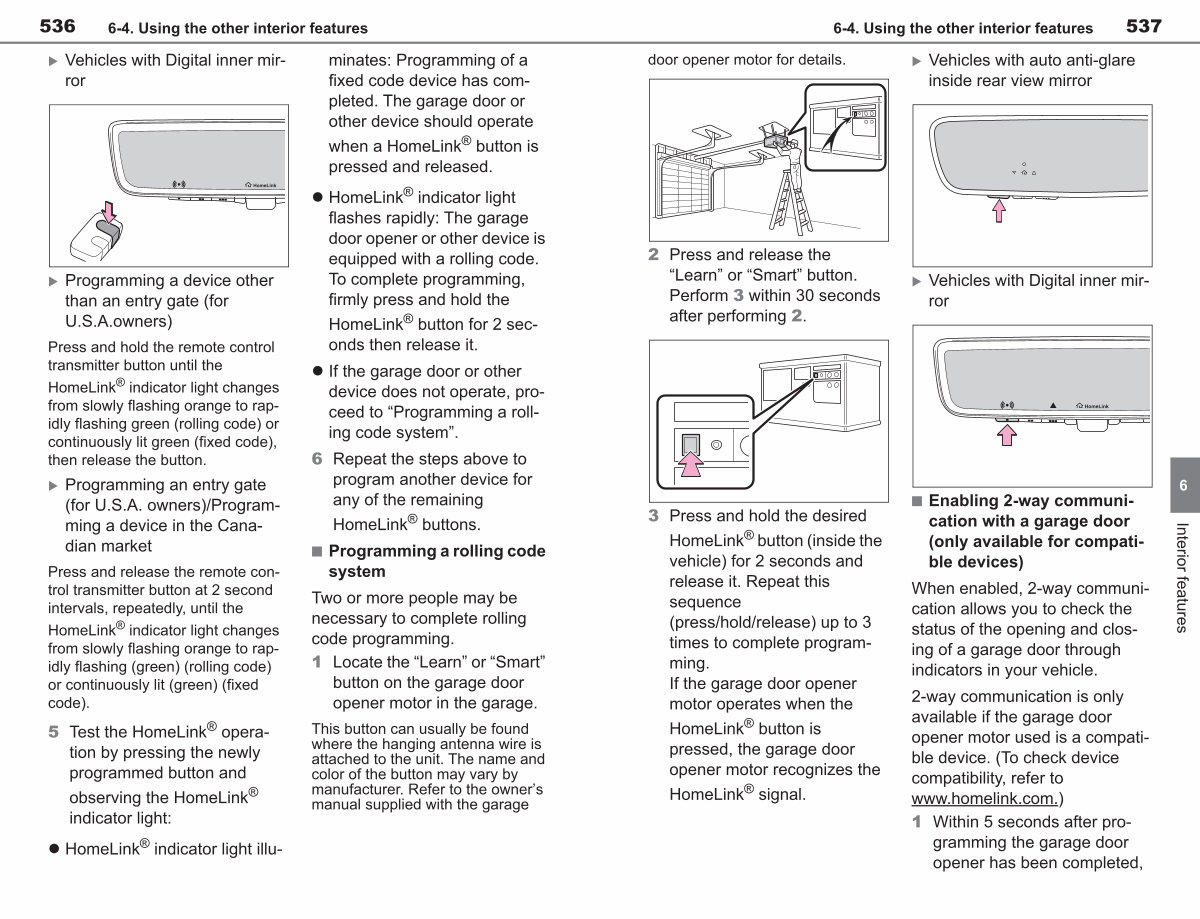

536 6-4. Using the other interior features
� Vehicles with Digital inner mirror
� Programming a device other than an entry gate( for U. S. A. owners)
Press and hold the remote control transmitter button until the
HomeLink ® indicator light changes from slowly flashing orange to rapidly flashing green( rolling code) or continuously lit green( fixed code), then release the button.
� Programming an entry gate( for U. S. A. owners)/ Programming a device in the Canadian market
Press and release the remote control transmitter button at 2 second intervals, repeatedly, until the
HomeLink ® indicator light changes from slowly flashing orange to rapidly flashing( green)( rolling code) or continuously lit( green)( fixed code).
5 Test the HomeLink ® operation by pressing the newly programmed button and
observing the HomeLink ® indicator light:
• HomeLink ® indicator light illuminates: Programming of a fixed code device has completed. The garage door or other device should operate
when a HomeLink ® button is pressed and released.
• HomeLink ® indicator light flashes rapidly: The garage door opener or other device is equipped with a rolling code. To complete programming, firmly press and hold the
HomeLink ® button for 2 seconds then release it.
• If the garage door or other device does not operate, proceed to“ Programming a rolling code system”.
6 Repeat the steps above to program another device for any of the remaining
HomeLink ® buttons.
n Programming a rolling code system
Two or more people may be necessary to complete rolling code programming. 1 Locate the“ Learn” or“ Smart” button on the garage door opener motor in the garage.
This button can usually be found where the hanging antenna wire is attached to the unit. The name and color of the button may vary by manufacturer. Refer to the owner’ s manual supplied with the garage
