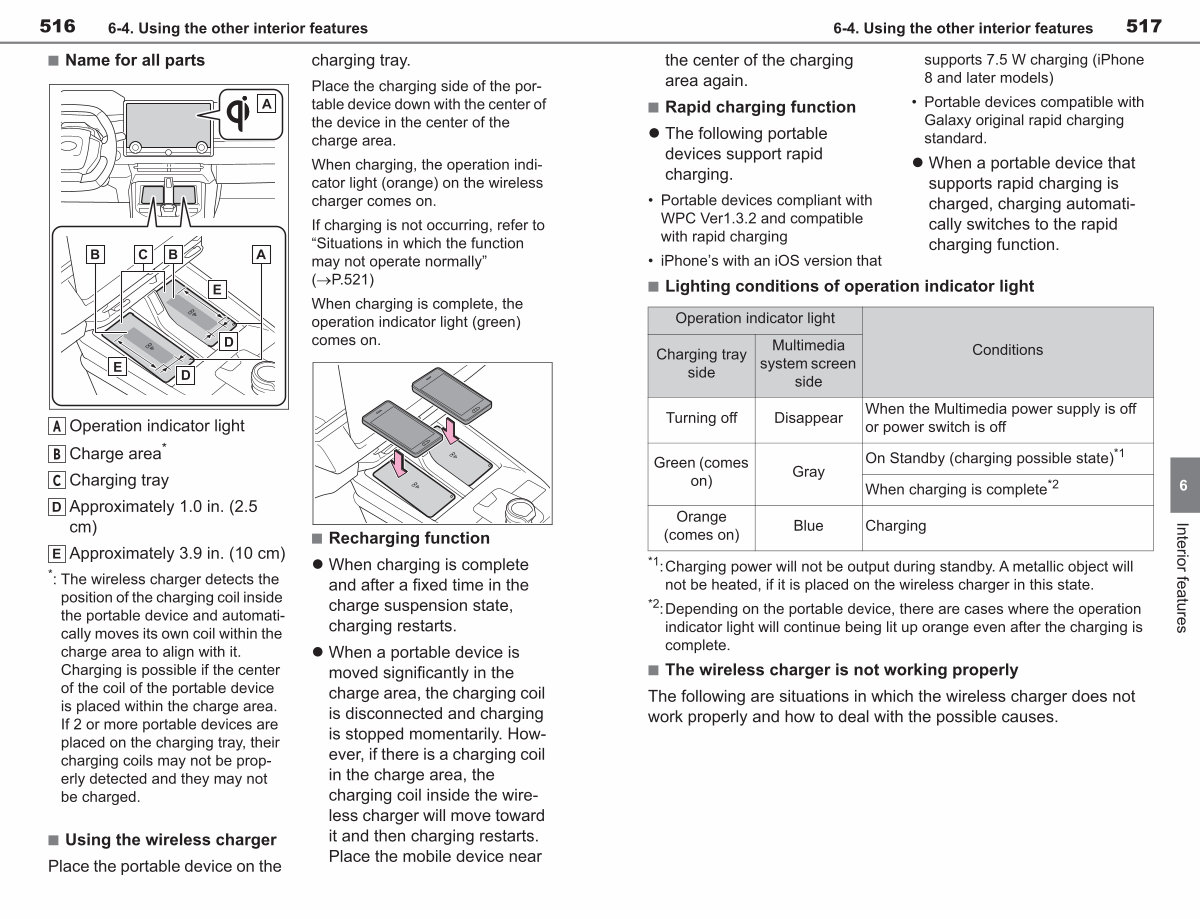

516 6-4. Using the other interior features n Name for all parts charging tray.
Place the charging side of the portable device down with the center of the device in the center of the charge area.
When charging, the operation indicator light( orange) on the wireless charger comes on.
If charging is not occurring, refer to“ Situations in which the function may not operate normally”( �P. 521)
When charging is complete, the operation indicator light( green) comes on.
A Operation indicator light
B Charge area *
C Charging tray
Approximately 1.0 in.( 2.5 cm)
Approximately 3.9 in.( 10 cm) *: The wireless charger detects the
position of the charging coil inside the portable device and automatically moves its own coil within the charge area to align with it. Charging is possible if the center of the coil of the portable device is placed within the charge area. If 2 or more portable devices are placed on the charging tray, their charging coils may not be properly detected and they may not be charged.
n Using the wireless charger Place the portable device on the n Recharging function
• When charging is complete and after a fixed time in the charge suspension state, charging restarts.
• When a portable device is moved significantly in the charge area, the charging coil is disconnected and charging is stopped momentarily. However, if there is a charging coil in the charge area, the charging coil inside the wireless charger will move toward it and then charging restarts. Place the mobile device near
