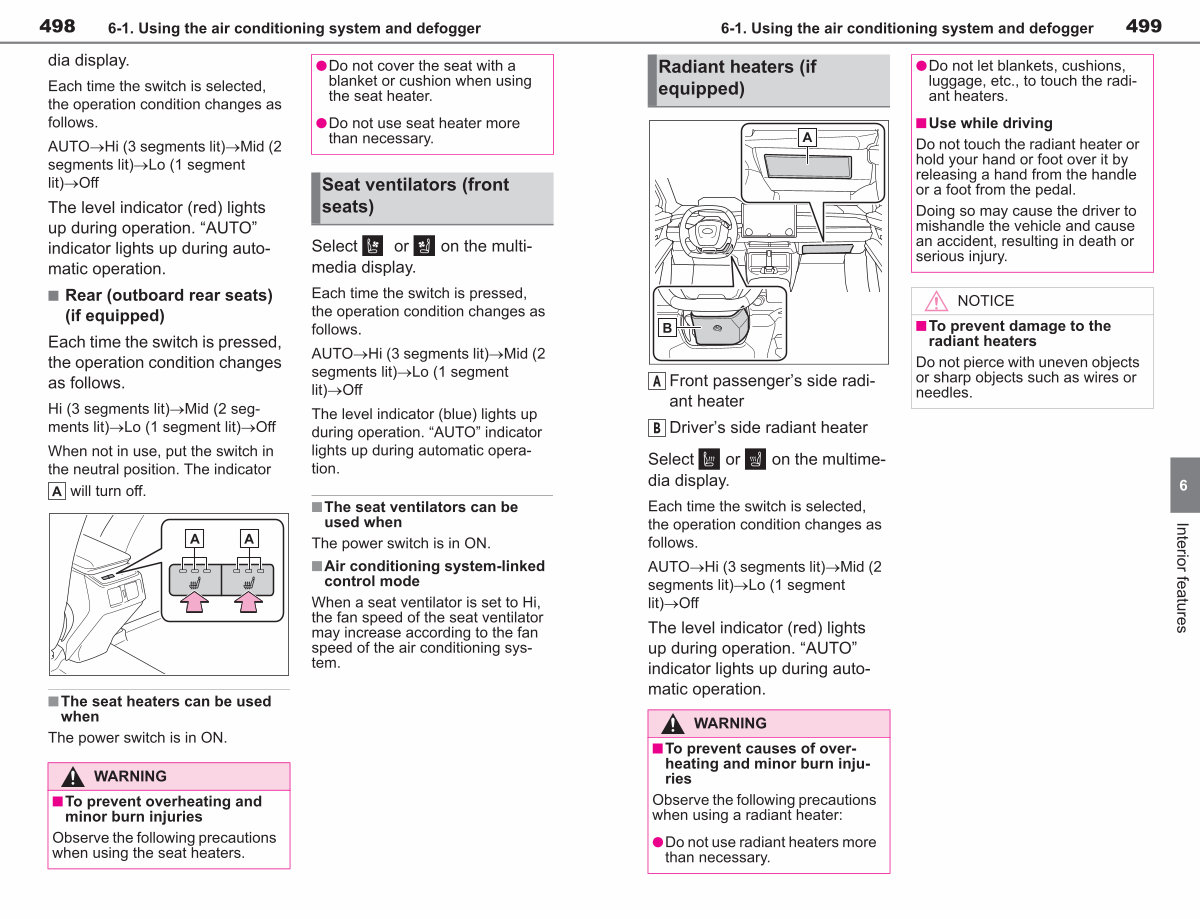

498 6-1. Using the air conditioning system and defogger
dia display.
Each time the switch is selected, the operation condition changes as follows.
AUTO�Hi( 3 segments lit) �Mid( 2 segments lit) �Lo( 1 segment lit) �Off
The level indicator( red) lights up during operation.“ AUTO” indicator lights up during automatic operation.
n Rear( outboard rear seats)( if equipped)
Each time the switch is pressed, the operation condition changes as follows.
Hi( 3 segments lit) �Mid( 2 segments lit) �Lo( 1 segment lit) �Off
When not in use, put the switch in the neutral position. The indicator
will turn off. lDo not cover the seat with a blanket or cushion when using the seat heater.
lDo not use seat heater more than necessary.
Seat ventilators( front seats)
Select or on the multimedia display.
Each time the switch is pressed, the operation condition changes as follows.
AUTO�Hi( 3 segments lit) �Mid( 2 segments lit) �Lo( 1 segment lit) �Off
The level indicator( blue) lights up during operation.“ AUTO” indicator lights up during automatic operation.
nThe seat ventilators can be used when
The power switch is in ON.
nAir conditioning system-linked control mode
When a seat ventilator is set to Hi, the fan speed of the seat ventilator
may increase according to the fan
speed of the air conditioning system. n The seat heaters can be used when
The power switch is in ON.
WARNING
n To prevent overheating and minor burn injuries
Observe the following precautions when using the seat heaters.
