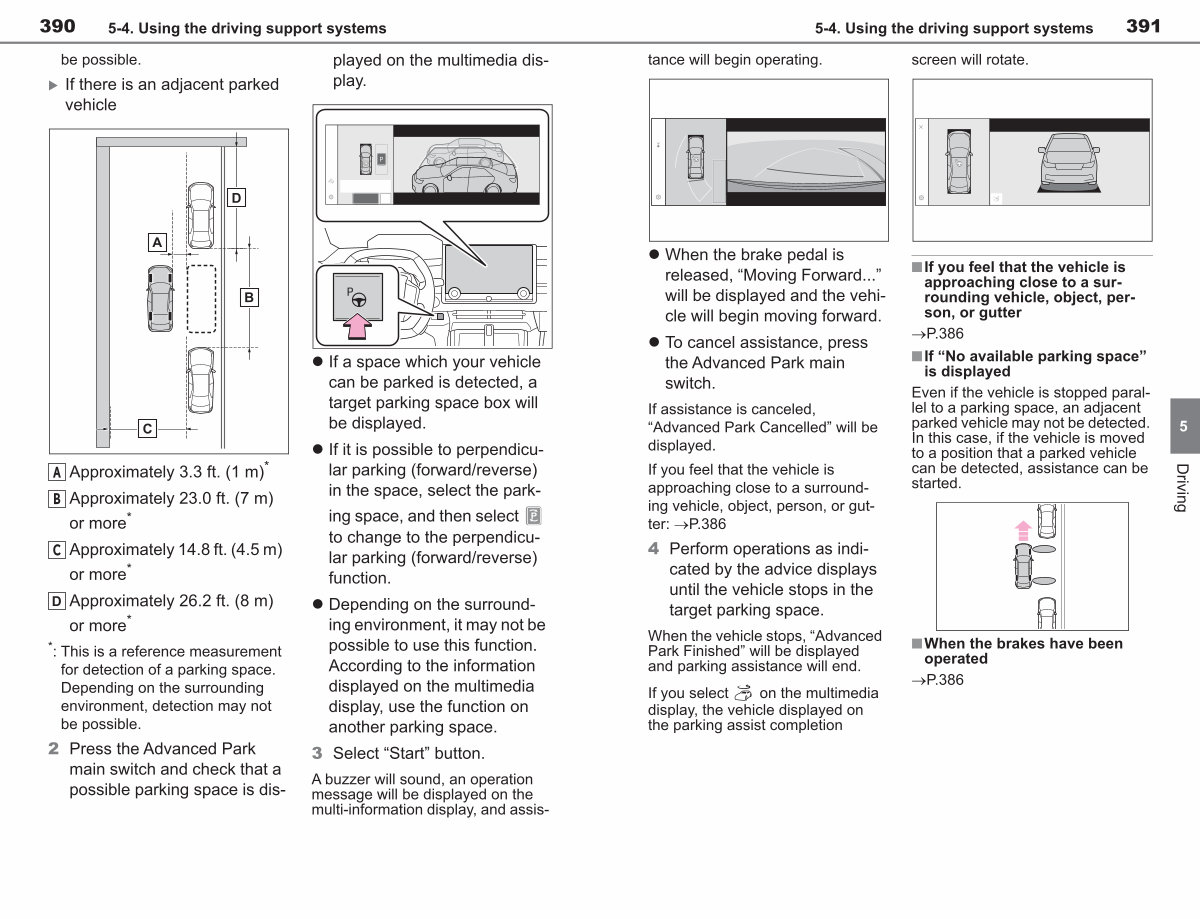

390 5-4. Using the driving support systems
be possible.
� If there is an adjacent parked vehicle
B Approximately 23.0 ft.( 7 m) or more *
C Approximately 14.8 ft.( 4.5 m) or more * Approximately 26.2 ft.( 8 m) or more *
*: This is a reference measurement
for detection of a parking space. Depending on the surrounding environment, detection may not be possible.
2 Press the Advanced Park main switch and check that a possible parking space is displayed on the multimedia display.
A Approximately 3.3 ft.( 1 m) *
• If a space which your vehicle can be parked is detected, a target parking space box will be displayed.
• If it is possible to perpendicular parking( forward / reverse) in the space, select the parking space, and then select to change to the perpendicular parking( forward / reverse) function.
• Depending on the surrounding environment, it may not be possible to use this function. According to the information displayed on the multimedia display, use the function on another parking space.
3 Select“ Start” button. A buzzer will sound, an operation message will be displayed on the
multi-information display, and assis-
