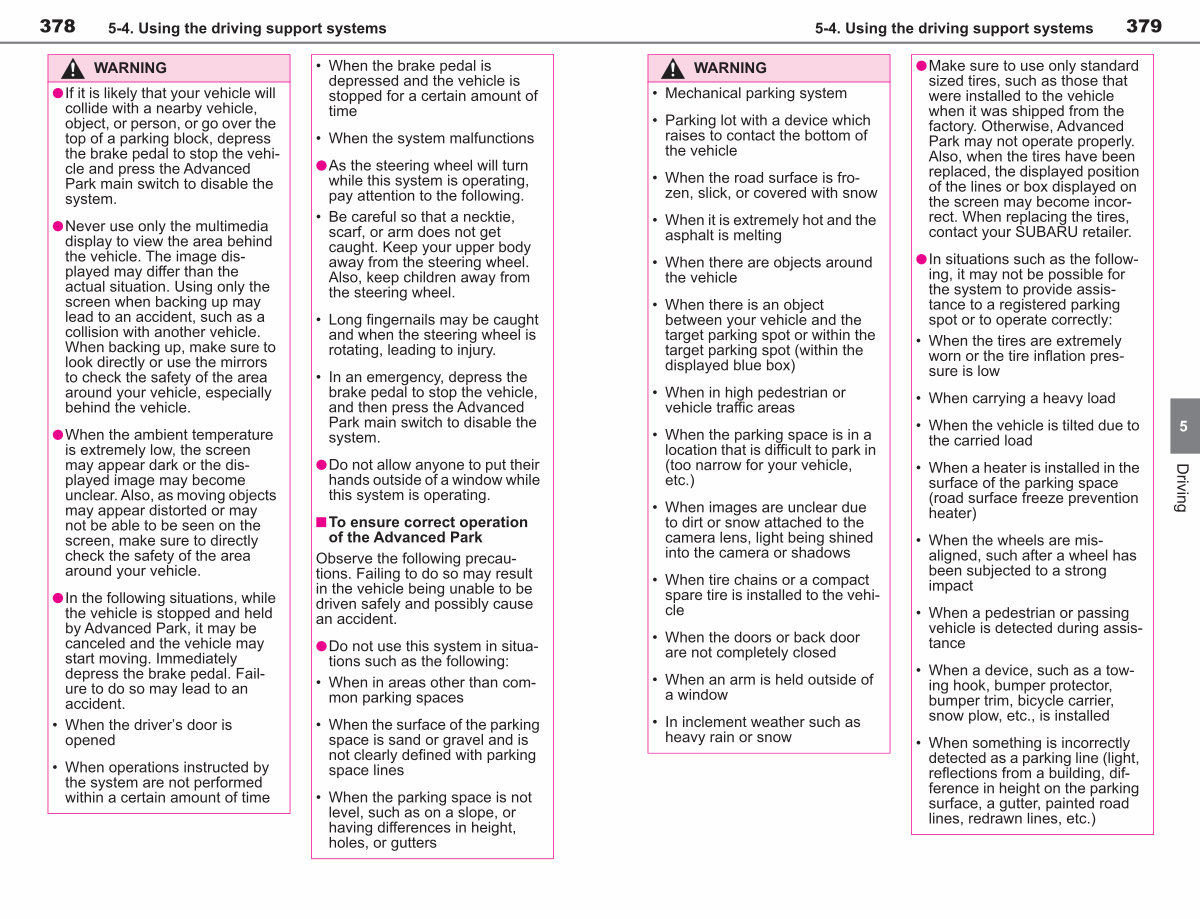

5-4. Using the driving support systems
379
WARNING
• Mechanical parking system
• Parking lot with a device which raises to contact the bottom of the vehicle
• When the road surface is frozen, slick, or covered with snow
• When it is extremely hot and the asphalt is melting
• When there are objects around the vehicle
• When there is an object between your vehicle and the target parking spot or within the target parking spot( within the displayed blue box)
• When in high pedestrian or vehicle traffic areas
• When the parking space is in a location that is difficult to park in( too narrow for your vehicle, etc.)
• When images are unclear due to dirt or snow attached to the camera lens, light being shined into the camera or shadows
• When tire chains or a compact spare tire is installed to the vehicle
• When the doors or back door are not completely closed
• When an arm is held outside of a window
• In inclement weather such as heavy rain or snow lMake sure to use only standard sized tires, such as those that were installed to the vehicle when it was shipped from the factory. Otherwise, Advanced Park may not operate properly.
Also, when the tires have been replaced, the displayed position
of the lines or box displayed on
the screen may become incorrect. When replacing the tires,
contact your SUBARU retailer.
lIn situations such as the following, it may not be possible for the system to provide assistance to a registered parking spot or to operate correctly:
• When the tires are extremely worn or the tire inflation pressure is low
• When carrying a heavy load
• When the vehicle is tilted due to the carried load
• When a heater is installed in the surface of the parking space( road surface freeze prevention heater)
• When the wheels are misaligned, such after a wheel has been subjected to a strong
impact
• When a pedestrian or passing vehicle is detected during assistance
• When a device, such as a towing hook, bumper protector, bumper trim, bicycle carrier, snow plow, etc., is installed
• When something is incorrectly detected as a parking line( light, reflections from a building, difference in height on the parking surface, a gutter, painted road lines, redrawn lines, etc.)
5
Driving
